IBOX-601-GT-1P

IBOX-601-GT-1P is a GPU expandable industrial PC designed for AI vision and edge computing applications, supporting discrete GPU acceleration and high-density industrial I/O.

Powered by 12th / 13th / 14th Gen Intel® Core™ processors and multiple PoE network interfaces, it is purpose-built for AI inference, intelligent video analytics, and real-time industrial edge computing scenarios.

  • This industrial PC support GPU acceleration for AI vision and edge inference workloads.
  • Powered by Intel® 12th / 13th / 14th Gen Core™ desktop processors with up to 8 Performance-cores + 8 Efficient-cores, delivering strong computing performance for AI inference and edge analytics.
  •  Integrated Intel® UHD Graphics 770 with up to 32 execution units (EUs), supporting high-performance graphics visualisation and media processing.
  • Advanced dual-VDBOX media engine capable of decoding 40+ simultaneous 1080p video streams @ 30 fps, ideal for AI visual analytics and multi-camera environments.
  • Onboard 9-channel Intel Gigabit Ethernet, including 6× PoE ports, enabling direct connection and power delivery for IP cameras, AI vision devices, and industrial sensors.
  • Optional M12 aviation port Ethernet version available for vibration-critical and high-stability application scenarios such as transportation and rail systems.
  • Supports dual-drive storage architecture, compatible with multi-storage configurations for visual data acquisition and logging.
  • Equipped with PCIe 4.0 expansion slot supporting discrete GPU acceleration (up to NVIDIA RTX 40 Series depending on power supply configuration), enabling AI inference, parallel computing, and machine learning tasks.
  • Supports GPIO & optional DI/DO modules, built-in RS232/RS485 ports, and internal USB for security dongles, enhancing industrial control adaptability.
  • Wide-range DC 9–36V power input with strong anti-interference design for deployment in harsh industrial environments.
  • Modular industrial chassis with combined passive + active thermal design and alluminum alloy enclosure for EMI protection, vibration resistance, and long-term reliable 24/7 operation.

The IBOX-601-GT-1P is an industrial PC support GPU expansion, built for AI vision, intelligent perception, and real-time edge computing applications.

It combines Intel® 12th / 13th / 14th Gen Core™ processors with high-density networking and PCIe GPU scalability, making it suitable for multi-camera vision systems, AI inference, and industrial analytics.

With wide-voltage power input, robust thermal design, and rich industrial I/O, it ensures reliable 24/7 deployment in factories, transportation, and critical infrastructure.

Model

IBOX-601-GT-1P

Supported OS

Win 10, Win 11, Linux (Ubuntu, Debian, Kali, CentOS, etc.); Win 10 IoT

Chipset

Intel® H770 Chipset, TDP 6W

CPU

Socket

Intel® Desktop Processors Socket LGA1700

Series

Gen.12/13/14 Intel® Core™ i3 processor (base TDP up to 65W)

Gen.12/13/14 Intel® Core™ i9/ i7/ i5 processor (base TDP up to 35W)

Graphic

Intel® UHD Graphics 730,  24 Execution Units

Intel® HD Graphics 770, 32 Execution Units

RAM

Type&Qty

2* Dual-CH DDR4 3200 MHz SO-DIMM Socket, Capacity up to 64GB for single slot





Storage Device

SATA

1* 2.5″ SATA3.0 Bay on daughterboard (6Gb/s);

4* SATA3.0 connectors (6Gb/s), Support RAID 0/1/5/10 (SATA3&4 are colay with PCIex2 of NGFF1)

MSATA

1* mSATA3.0 slot on board (6Gb/s)

M.2

1* M.2 2280 M-key slot (NGFF3) , support PCIex4 Gen.3 NVMe SSD (From CPU);

1* M.2 2280 M-key slot (NGFF1) , support PCIex2 Gen.3 NVMe/ SATA3.0 SSD (From PCH, the PCIex2 signale is colay with SATA 3&4)















I/O Interface

COM

1* RS232/485 with RJ45 connector, 1* RS232/485 with DB9 connector, switchable by jumper

Ethernet

(Option A&B) 2* Intel® i210AT GbE LAN, RJ45 connector; 1* Intel® i219LM GbE LAN, RJ45 connector

(Option A) 6* Intel® i226 GbE LAN, RJ45 connector (One of Poe GbE LAN is shared with Mini-PCIe’s PCIe signal on daughterrboard) (Option B) 6* Intel® i226 GbE LAN, M12 connector (One of Poe GbE LAN is shared with Mini-PCIe’s PCIe signal on daughterrboard)

USB

4* USB3.2 Gen 2×1 (10Gb/s);

4* USB3.0 (5Gb/s); (USB3.0-1 is colay with M.2 B Key slot, USB3.0-2 is colay with Mini-PCIe slot on motherboard); 3* USB2.0, 1* Internal USB2.0 (480Mb/s, on daughterboard)

Video

1* DP, Support 4096*2160 @60Hz+1* HDMI, Support 4096×2304 @24Hz (Optional 2* DP, Support 4096 x 2304@60Hz); Optional with one more HDMI port, expanded by TP-IPC daughter card, supports 3 independent displays

Audio

1* MIC, 1* SPK; With 7.1+2 channels HD (High Definition) Audio Codec Realtek ALC897

SIM

2* External SIM card slot, SIM 1 is connected to M.2 B-key slot, SIM2 is connected to Mini-PCIe slot on daughterboard; (Available with one more internal SIM card slot when using a LTE module with SIM card slot)

Power Supply

9-36 VDC; 1* Terminal Block (4-Pin, 5.08mm)

Other

1* 8-bit GPIO, Terminal Block (12-Pin, 3.81mm), 4-Inputs/4-Outputs, 0-5V Input Range;

1* Terminal Block (4-Pin, 3.81mm Pitch) with Remote Switch and Power Indicator;

1* PS/2 for keyboard/ mouse; 1* Auto-On Jumper; 1* TPM header (2*6-pin)



Extended

Capabilities



Additional

Internal Interface

1* PCIe4.0 x16

1* M.2 3042/3052 B-key Slot with SIM card slot1 (USB3.0, USB signal is colay with USB1 on motherboard);

1* Full Size Mini-PCIe Slot (PCIe+USB2.0, on motherboard, without SIM card slot, USB signal iss colay with USB2 on motherboard);

1* Full Size Mini-PCIe Slot with SIM card slot2 (PCIe+USB2.0, on daughterboard, the PCIe signal is colay with one LAN on daughterboard); 1* M.2 2230 E-key Slot (PCIe+USB2.0, support CNVi, WiFi+BT)



Environment

Operating Temp.

-10 ~ 55 °C w/ 0.7m/s Airflow

Storage Temp.

-40 ~ 85 °C (-40~185 °F)

Relative Humidity

40 °C @ 95%, Non-Condensing

Physical

Characteristics

Dimensions

290.35* 109.28* 190 mm  (W* H* D)

Net Weight

3.9 KG

Regulation

EMC

CE/FCC Class B, CCC

Safety

CE-LVD, RoHS, CCC

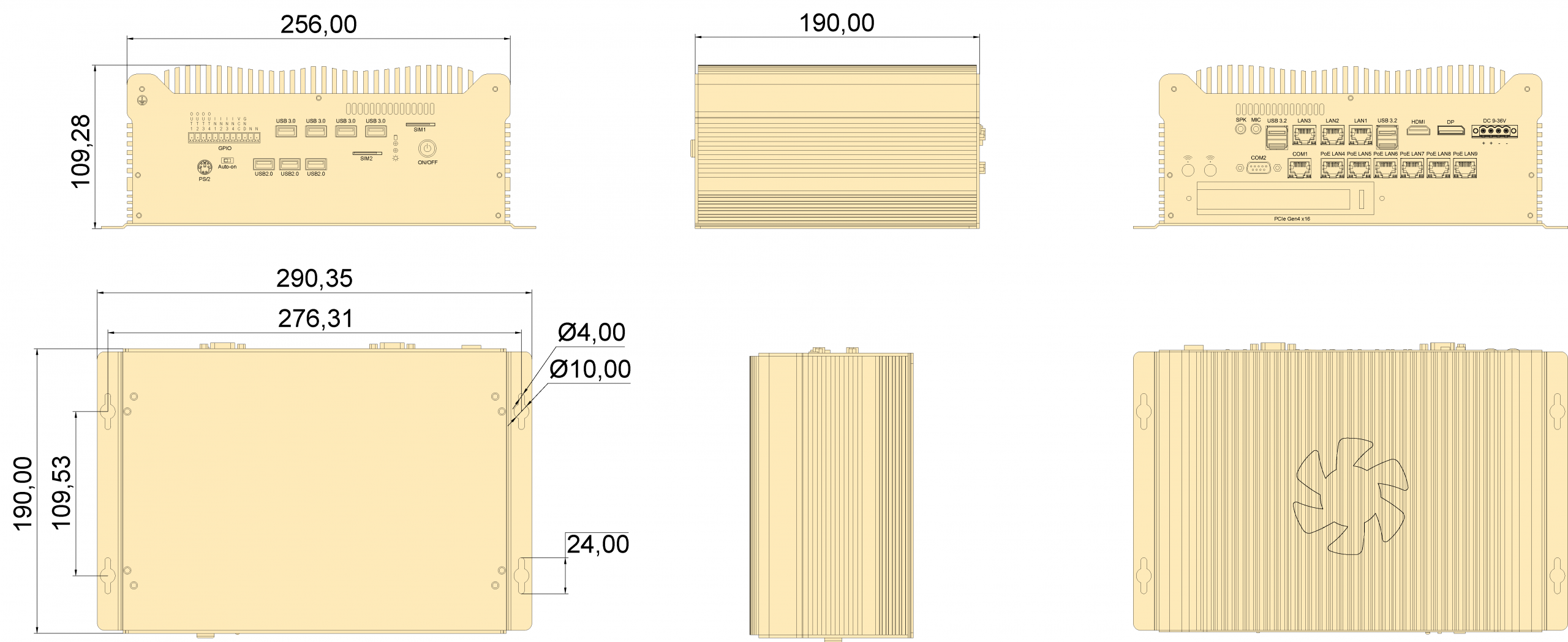

IBOX-601-GT-1P industrial PC support GPU dimensions

CPU

Code Name

Total Cores

Total Threads

Max Turbo Frequency

Base Frequency

Cache

TDP

Memory Types

Integrated Graphics

Intel® Core™ I3-12100T

Alder Lake

4

8

4.10 GHz

2.20 GHz

12 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 730, 24EUs

Intel® Core™ I5-12500T

Alder Lake

6

12

4.40 GHz

2.00 GHz

18 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 770, 32EUs

Intel® Core™ I7-12700T

Alder Lake

12

20

4.70 GHz

1.40 GHz

25 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 770, 32EUs

Intel® Core™ I9-12900T

Alder Lake

16

24

4.90 GHz

1.40 GHz

30 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 770, 32EUs

Intel® Core™ I3-12100

Alder Lake

4

8

4.30 GHz

3.30 GHz

12 MB Intel® Smart Cache

65 W

DDR4

Intel® HD Graphics 730, 24EUs

Intel® Core™ I5-12500

Alder Lake

6

12

4.60 GHz

3.00 GHz

18 MB Intel® Smart Cache

65 W

DDR4

Intel® HD Graphics 770, 32EUs

Intel® Core™ I3-13100T

Raptor Lake

4

8

4.10 GHz

2.20 GHz

12 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 730, 24EUs

Intel® Core™ I5-13500T

Raptor Lake

14

20

4.40 GHz

2.00 GHz

24 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 770, 32EUs

Intel® Core™ I7-13700T

Raptor Lake

16

24

4.70 GHz

1.40 GHz

30 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 770, 32EUs

Intel® Core™ I9-13900T

Raptor Lake

24

32

4.90 GHz

1.40 GHz

36 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 770, 32EUs

Intel® Core™ I3-13100

Raptor Lake

4

8

4.30 GHz

3.30 GHz

12 MB Intel® Smart Cache

65 W

DDR4

Intel® HD Graphics 730, 24EUs

Intel® Core™ I3-14100T

Raptor Lake

4

8

4.40 GHz

2.70 GHz

12 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 730, 24EUs

Intel® Core™ I5-14500T

Raptor Lake

14

20

4.80 GHz

1.70 GHz

24 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 770, 32EUs

Intel® Core™ I7-14700T

Raptor Lake

20

28

5.20 GHz

1.30 GHz

33 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 770, 32EUs

Intel® Core™ I9-14900T

Raptor Lake

24

32

5.50 GHz

1.10 GHz

36 MB Intel® Smart Cache

35 W

DDR4

Intel® HD Graphics 770, 32EUs

Intel® Core™ I3-14100

Raptor Lake

4

8

4.70 GHz

3.50 GHz

12 MB Intel® Smart Cache

65 W

DDR4

Intel® HD Graphics 730, 24EUs

Optional Items

Max Qty

Description

Isolated RS-232

1

DB9 or Phoenix Terminal connector, connected by header

Non-Isolated RS-232

1

DB9 or Phoenix Terminal connector, connected by header

Non-Isolated RS-422

1

DB9 or Phoenix Terminal connector, connected by header with a transform module

Non-Isolated RS-485

1

DB9 or Phoenix Terminal connector, connected by header with a transform module

Isolated 8-bit GPIO, 9-24V

1

Phoenix Terminal connector, connected by header

Isolated 8-bit GPIO with current loading, 9-26V

1

Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface

4G Module

1

Connected by Mini-PCIe interface

WiFi Module without AP mode

1

Connected by Mini-PCIe interface, M.2 interface or internal USB interface

WiFi Module with AP mode

1

Connected by Mini-PCIe interface

Dual channel CAN-Bus Module

2

Connected by Mini-PCIe or M.2 interface

Dual GbE PoE LAN Module

1

Connected by Mini-PCIe Interface
