IBOX-108-2L4C-3P

The IBOX-108-2L4C-3P fanless system is an ideal, application-ready, system platform solution. All electronic components are protected in a compact, sealed chassis that is easy to embed in a customer’s own enclosure or use as a stand-alone unit when space is limited.
  • Max six intergrated isolated RS232/485 with strong anti-interference capability and stability
  • Cable-free design for better vibration resistance
  • Modular parts design with strong scalability
  • Full sealed fanless design, with aluminum alloy cooling enclosure, dustproof, anti-vibration and anti-interference
  • Scientific and reasonable interface layout
  • Double board design with diverse interfaces

IBOX-108-2L4C-3P Embedded Mini PC with Intel®i3-i7,5th-11th and Intel® Celeron® processors provides you with more computing power and cost advantages.Multi-SO-DIMM DDR4 provides 8 to 64GB of RAM and supports multiple monitors via HDMI and VGA. It is dust, interference and heat resistant. Rich I/O interfaces include 2LAN, 4COM, 3PCIE, 4 USB2.0, 2 USB3.0; and 1 built-in USB2.0 to meet the needs of most markets. Desktop installation is easy, with a Wi-Fi module and a SIM card slot for expansion.

Model IBOX-108-2L4C-3P
Supported OS Win 7, Win 8, Win 10, Win 11, Linux (Ubantu, Dibian, Kali, CentOS, etc.); WES 7; Win 10 IoT
CPU Series/ Model 4th~5th Gen. Intel® Core™ Processor 6th~8th Gen. Intel® Core™ Processor Intel® Celeron® 3865U 11th Gen. Intel® Core™ Processor
TDP Up to 15W Up to 15W Up to 28W
RAM Type & Qty 1* SO-DIMM Socket 2* SO-DIMM Socket 2* SO-DIMM Socket
Frequency DDR3L-1333/1600 MHz DDR4-2133/2400 MHz DDR4-3200 MHz
Capacity Up to 8GB Up to 32GB Up to 64GB
Storage Device SATA 1* 2.5″ SATA3.0 Bay on board (6Gb/s)
MSATA 1* mSATA3.0 slot on board (6Gb/s)
I/O Interface COM 4* Isolated DB9 COM Ports with ESD/EFT/Surge protection (COM1-4, support RS232/485, switchable by jumper); 2* Internal COM headers on board (COM5-6, RS232)
Ethernet 2* 1.0 GbE LAN, Intel i211/i210, RJ45 only (Only Intel® Core™ i3-5020U is working with intel i210 GbE LAN) 2* 2.5 GbE LAN, Intel i225, RJ45
USB 2* USB3.0; 4* USB2.0; 1* Internal USB2.0 4* USB3.0; 2* USB2.0; 1* Internal USB 2.0 2* USB3.0; 4* USB2.0; 1* Internal USB2.0
Video 1* HDMI, Support 4096×2304@24Hz; 1* VGA, Support 1920×1200@60Hz; 1* HDMI, Support 4096×2304@24Hz; 1* VGA, Support 1920×1200@60Hz; 1* HDMI, Support 4096×2304@60Hz; 1* VGA, Support 1920×1200@60Hz;
Audio 1* MIC, 1* SPK; With 5.1 channels HD Audio Codec Realtek ALC662 1* MIC, 1* SPK; With 5.1 channels HD Audio Codec Realtek ALC662 1* MIC, 1* SPK; With 7.1 channels HD Audio Codec Realtek ALC897
SIM 1* External SIM card slot connected to Mini-PCIe
Power Supply 9-36V DC; 1* Terminal Block (2-Pin, 5.08mm)
Others 1* 8-bit GPIO, Terminal Block (12-Pin, 3.81mm), 4-Inputs/4-Outputs, 0-5V Input Range; 1* Terminal Block (4-Pin, 3.81mm Pitch) with Remote Switch and Power Indicator; 1* Auto-On Switch
Extended Capabilities PCIe 1* PCIe2.0 x1 with x4 socket+ 2* PCI; Or 3* PCI 1* PCIe3.0 x4 + 2* PCI; Or 3* PCI
Mini-PCIe 1* Full Size Mini-PCIe (PCIe+USB2.0) with SIM card slot
Environment Operating Temperature -10 ~ 55 °C w/ 0.7m/s Airflow
Storage Temperature -40 ~ 85 °C (-40~185 °F)
Relative Humidity 40 °C @ 95%, Non-Condensing

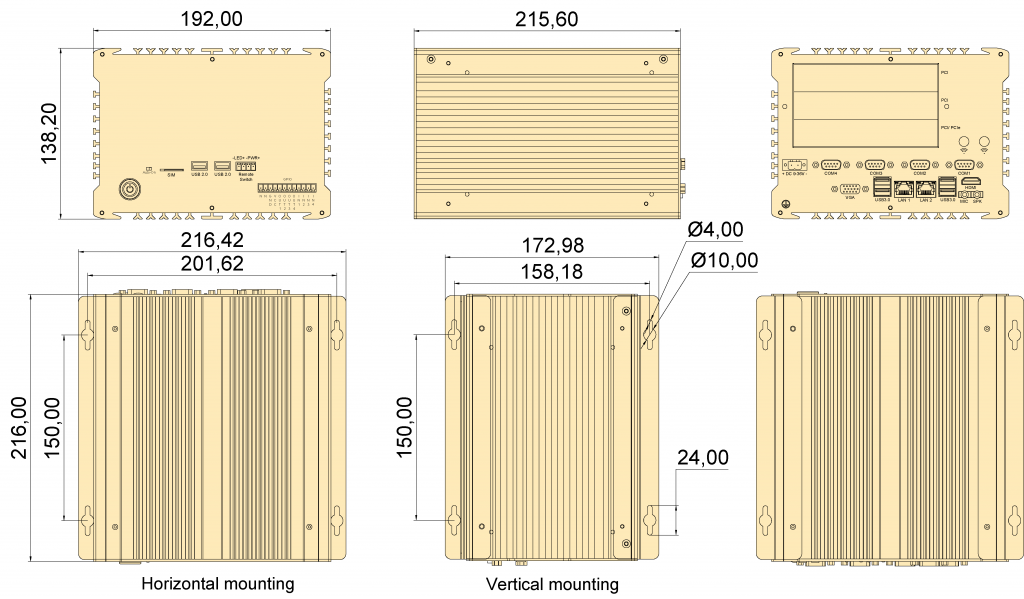

Physical Characteristics Dimensions 192* 138.2* 215.6 mm (W* H* D)
Net Weight 2.85 KG (The actual weight is subject to the final configuration)
Regulation EMC CE/FCC Class B, CCC
Safety CE-LVD, RoHS, CCC

CPU

Total Cores

Total Threads

Max Turbo Frequency

Base Frequency

Memory Types

Integrated Graphics

Intel® Core™ I5-4300U

2

4

2.90 GHz

1.90 GHz

DDR3

Intel® HD Graphics 4400

Intel® Core™ I7-4600U

2

4

3.30 GHz

2.10 GHz

DDR3

Intel® HD Graphics 4400

Intel® Core™ I3-5020U

2

4

2.20 GHz

DDR3

Intel® HD Graphics 5500

Intel® Celeron® 3865U

2

2

1.80 GHz

DDR3

Intel® HD Graphics 610

Intel® Core™ I5-6360U

2

4

3.10 GHz

2.00 GHz

DDR4

Intel® Iris® Graphics 540

Intel® Core™ I7-6650U

2

4

3.40 GHz

2.20 GHz

DDR4

Intel® Iris® Graphics 540

Intel® Core™ I5-7200U

2

4

3.10 GHz

2.50 GHz

DDR4

Intel® HD Graphics 620

Intel® Core™ I7-7600U

2

4

3.90 GHz

2.80 GHz

DDR4

Intel® HD Graphics 620

Intel® Core™ I3-8145U

2

4

3.90 GHz

2.10 GHz

DDR4

Intel® UHD Graphics 620

Intel® Core™ I5-8265U

4

8

3.90 GHz

1.60 GHz

DDR4

Intel® UHD Graphics 620

Intel® Core™ I7-8565U

4

8

4.60 GHz

1.80 GHz

DDR4

Intel® UHD Graphics 620

Intel® Core™ I5-1135G7

4

8

4.20 GHz

2.40 GHz

DDR4

Intel®Iris Xe Graphics; 80Eus

Intel® Core™ I7-1165G7

4

8

4.70 GHz

2.80 GHz

DDR4

Intel®Iris Xe Graphics; 96Eus

Optional Items Max Qty Description
Isolated RS-232 2 DB9 or Phoenix Terminal connector, connected by header
Non-Isolated RS-232 2 DB9 or Phoenix Terminal connector, connected by header
RS-422 With Surge Protection 2 DB9 or Phoenix Terminal connector, connected by header, with additional RS232 TO RS422 Module
RS-485 With Surge Protection 2 DB9 or Phoenix Terminal connector, connected by header, with additional RS232 TO RS485 Module
Isolated 8-bit GPIO, 9-24V 1 Phoenix Terminal connector, connected by non-standard M.2 interface
Isolated 8-bit GPIO with current loading, 9-26V 1 Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface
Isolated 15-bit GPIO, 0-5V 1 Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface
Isolated 15-bit GPIO with 7-in & 8-out, 12-24V 1 Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface
4G Module 1 Connected by Mini-PCIe interface
WiFi Module 1 Connected by Mini-PCIe interface or internal USB interface
Dual Channel CANBus Module 1 Connected by Mini-PCIe interface
