IBOX-106V2-6C2L-1P

The IBOX-106V2-6C2L-1P system is an ideal, application-ready, system platform solution with rich expansion slots. All electronic components are protected in a compact that is easy to embed in a customer’s own enclosure or use as a stand-alone unit when space is limited.
  • Single board design with rich I/O expansion, support diversity andrapid customization
  • Support max 6* isolated RS232 serial ports and 8* USB ports
  • Wide voltage power supply are supported
  • Full sealed design with aluminum alloy cooling enclosure,dustproof, anti-vibration and anti-interference;
  • Both of M.2 & Mini-PCIe expansion card are supported
  • Support PCI/ PCIe2.0 x16 expansion card

The IBOX-106V2-6C2L-1P is based on the Intel® Core™ I5-3317U, 2.60 GHz CPU with 4K media support, integrated connectivity up to Gigabit Wi-Fi for increased security and performance, SATA, MSATA slot support and dual-channel discrete DDR4 SO-DIMM memory. HD Dual Screen HDMI,VGA,I/O ports include 2 LAN ports, 6 COM ports, 1 PCI, 2 USB 3.0; 4 USB 2.0 ports, audio ports and optional WiFi module.

Model

IBOX-106V2-6C2L-1P

Supported OS

Win XP, Win 7, Win 8, Win 10, Linux (Ubuntu, Dibian, Kali, CentOS, etc.); WES 7; Win 10 IoT

CPU

Intel® Core™ I5-3317U, Dual cores, 4 Threads, Base Fre. 1.70GHz, Turbo Fre. 2.60 GHz, TDP 17W

RAM

SO-DIMM

1* SO-DIMM Socket, DDR3L-1333/1600 MHz, Up to 8GB



Storage Device

SATA

1* 2.5″ SATA 2.0 Bay on board (3Gb/s); 1* SATA 2.0 connector on board (3Gb/s)

MSATA

1* mSATA3.0 slot on board (6Gb/s)

















I/O Interface

COM

1* RS232/422/485 (COM1); 1* RS232/485 (COM2); 4* RS232 (COM3-6)

Ethernet

2* GbE LAN, Realtek RTL8111H, support Wake on Network/PXE

USB

2* USB 3.0, 4* USB 2.0; 2* USB2.0 headers



Video

1* HDMI, support 3840×2160@30Hz;

1* VGA, support 1920×1200@60Hz;

Audio

1* SPK; With 5.1 channels HD Audio Codec Realtek ALC662

Power Supply

9-36V DC; 1* Terminal Block (2-Pin, 5.08mm)

SIM Card Slot

1* Internal SIM Card Slot connected to M.2 B-key Slot

Other

1* Terminal Block (4-Pin, 3.81mm Pitch) with Remote Switch and Power Indicator; 1* PS/2 for Keyboard/Mouse; 1* 8-bit GPIO header

Extended Capabilities

Additional Internal Interface

1* PCIe2.0 x16 or 1* PCI;

1* M.2 3052 B-key slot with SIM card slot; (PCIe+USB3.0)

1* Full size Mini-PCIe (PCIe/USB2.0); Support optional 2nd SIM card slot connected to Mini-PCIe





Environment

Operating Temperature

-10 ~ 55 °C w/ 0.7m/s Airflow

Storage Temperature

-40 ~ 85 °C (-40~185 °F)

Relative Humidity

40 °C @ 95%, Non-Condensing



Physical Characteristics

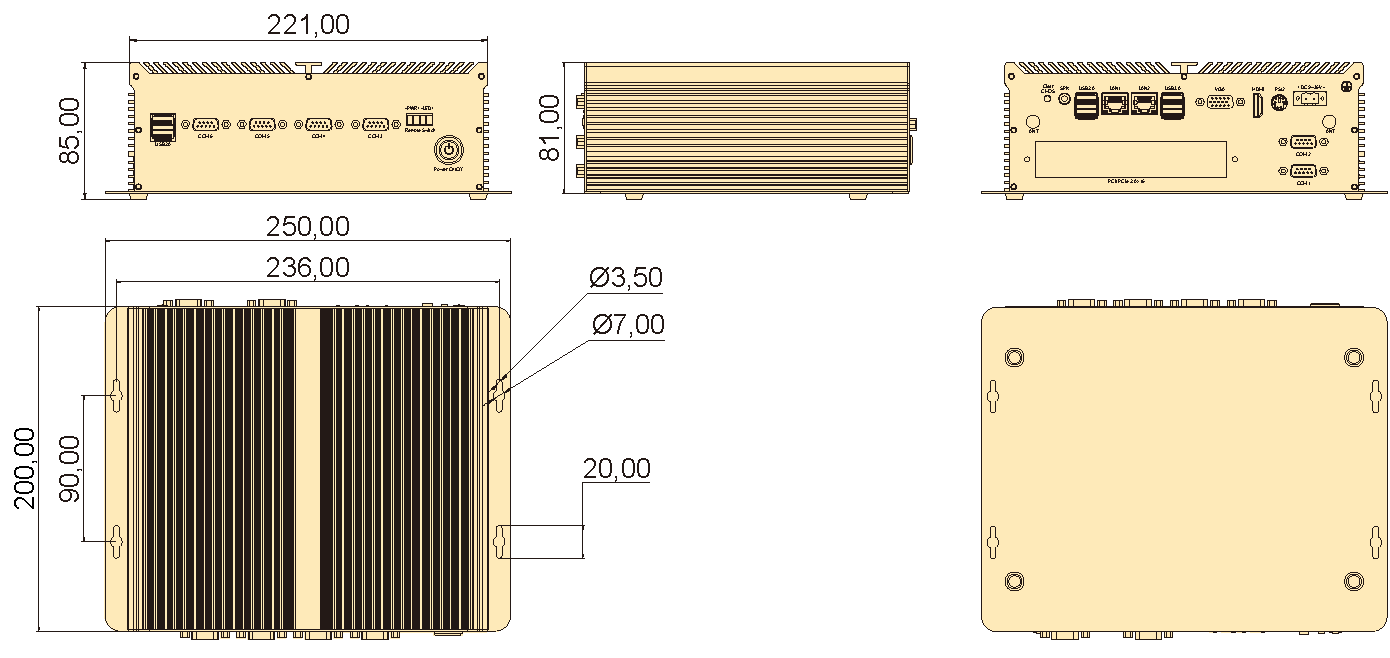

Dimensions

250*85*200 mm (W* H* D)

Net Weight

2.65 KG



Regulation

EMC

CE/FCC Class B, CCC

Safety

CE-LVD, RoHS, CCC

 CPU

 Code Name

Tota Cores

Total Threads

Max Turbo Frequency

Base Frequency

 Cache

 TDP

Memory Types

 Integrated Graphics

Intel® Core™ I5-3317U

Ivy Bridge

2

4

2.60 GHz

1.70 GHz

3 MB Intel® Smart Cache

17 W

DDR3

Intel® HD Graphics 4000

Optional Items

Max Qty

Description

Isolated 8-bit GPIO, 9-26V

1

Phoenix Terminal connector, connected by jumper

Isolated RS-232

2

DB9 or Phoenix Terminal connector, connected by header; (Exisiting COM1/2 will be replaced)

4G Module

1

Connected by M.2 B-key interface or Mini-PCIe interface by adaptor card with SIM card slot

5G Module

1

Connected by M.2 B-key interface

WiFi Module without AP mode

1

Connected by Mini-PCIe interface

WiFi Module with AP mode

1

Connected by Mini-PCIe interface

Dual channel CAN-Bus Module

1

Connected by Mini-PCIe interface
