The IBOX-105V3-8L2C6P Embedded Mini PC is equipped with Intel® Core 8 to 11 Generation processors, giving you more computing power and cost advantages.Multi-SO-DIMM DDR4 provides 32 to 64GB of memory and supports multiple monitors via HDMI and VGA. It is dust, interference and heat resistant. Rich I/O interfaces including 8LAN( include 6POE), 2COM, 4 USB3.0, 3 USB3.0; and 1 built-in USB2.0 meet the needs of most markets. Desktop installation is easy, with a Wi-Fi module and a SIM card slot for expansion.
Model | IBOX-105V3-8L2C6P (IBOX-105V3-8L2C6P-RJ45, With 6* RJ45 PoE LAN; IBOX-105V3-8L2C6P-M12, With 6* M12 PoE LAN) | ||
Supported OS | Win7 x64, Win 10 (Version 1809 and above), Win 11, Linux (Kernel 5.16 and above); WES 7; Win 10 IoT | ||
CPU | Series/ Model | 8th Gen. Intel® Core™ Processor | 11th Gen. Intel® Core™ Processor |
TDP | Up to 15W | Up to 28W | |
RAM | Type & Qty | 2* SO-DIMM Socket | 2* SO-DIMM Socket |
Frequency | DDR4-2133/2400 MHz | DDR4-3200 MHz | |
Capacity | Up to 32GB | Up to 64GB | |
Storage Device | SATA | 1* 2.5″ SATA3.0 Bay on board (6Gb/s) | |
MSATA | 1* mSATA3.0 slot on board (6Gb/s) | ||
I/O Interface |
COM | IBOX-105V3-8L2C6P-RJ45: 1* RS232/485 with RJ45 connector, 1* RS232/485 with DB9 connector, switchable by jumper; IBOX-105V3-8L2C6P-M12: 1* RS232/485 with DB9 connector, switchable by jumper, 1* RS232 header | |
Ethernet with PoE | 6* Intel® i226 GbE PoE LAN (RJ45/M12 Connector); | ||
Ethernet without PoE | 2* 1.0 GbE LAN, Intel i211, RJ45 | 2* 2.5 GbE LAN, Intel i225, RJ45 | |
USB | 4* USB3.0; 3* USB2.0; 1* Internal USB 2.0 | 2* USB3.0; 5* USB2.0; 1* Internal USB2.0 | |
Video | 1* HDMI, support 4096×2304@24Hz; 1* VGA, support 1920×1200@60Hz; | 1* HDMI, Support 4096×2304@60Hz; 1* VGA, Support 1920×1200@60Hz; | |
Audio | 1* MIC, 1* SPK; With 5.1 channels HD Audio Codec Realtek ALC662 | 1* MIC, 1* SPK; With 7.1 channel HD Audio Codec Realtek ALC897 | |
SIM | 1* External SIM card slot connected to Mini-PCIe | ||
Power Supply | 9-36V DC; 1* Terminal Block (3-Pin, 5.08mm), 1* DC Jack (5.5* 2.5mm) | ||
Others | 1* 8-bit GPIO (4-Inputs/4-Outputs, 0-5V Input Range) and 1* Remote Switch on Terminal Block (12-Pin, 3.81mm); 1* Auto-On Switch; 1* PS/2 for Keyboard & Mouse; | ||
Extended Capabilities | Additional Internal Interface |
1* Full Size Mini-PCIe with SIM card slot; (PCIe+USB2.0, PCIe signal is shared with 1*LAN) | |
Environment | Operating Temperature | -10 ~ 55 °C w/ 0.7m/s Airflow | |
Storage Temperature | -40 ~ 85 °C (-40~185 °F) | ||
Relative Humidity | 40 °C @ 95%, Non-Condensing | ||

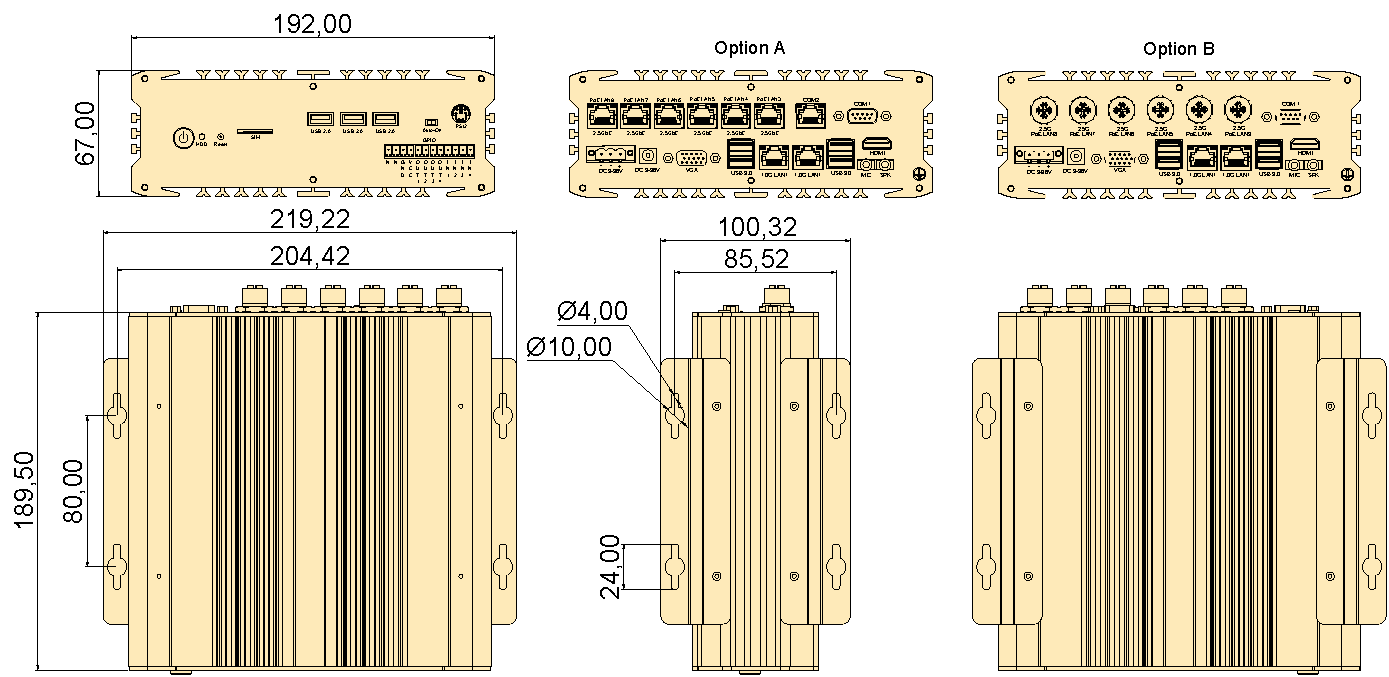

Physical Characteristics | Dimensions | 192* 67* 189.5 mm (W* H* D) | |
Net Weight | 2.5 KG (The actual weight is subject to the final configuration) | ||
Regulation | EMC | CE/FCC Class B, CCC | |
Safety | CE-LVD, RoHS, CCC |
CPU | Code Name | Total Cores | Total Threads | Max Turbo Frequency | Base Frequency | Cache | TDP | Memory Types | Integrated Graphics |
Intel® Core™ I3-8145U | Whiskey Lake | 2 | 4 | 3.90 GHz | 2.10 GHz | 4 MB Intel® Smart Cache | 15W | DDR4 | Intel® UHD Graphics 620 |
Intel® Core™ I5-8265U | Whiskey Lake | 4 | 8 | 3.90 GHz | 1.60 GHz | 6 MB Intel® Smart Cache | 15W | DDR4 | Intel® UHD Graphics 620 |
Intel® Core™ I7-8565U | Whiskey Lake | 4 | 8 | 4.60 GHz | 1.80 GHz | 8 MB Intel® Smart Cache | 15W | DDR4 | Intel® UHD Graphics 620 |
Intel® Core™ I5-1135G7 | Tiger Lake | 4 | 8 | 4.20 GHz | 2.40 GHz | 8 MB Intel® Smart Cache | 12-28W | DDR4 | Intel® Iris® Xe Graphics; 80Eus |
Intel® Core™ I7-1195G7 | Tiger Lake | 4 | 8 | 5.00 GHz | 2.90 GHz | 12 MB Intel® Smart Cache | 12-28W | DDR4 | Intel® Iris® Xe Graphics eligible; 96Eus |
Optional Items | Max Qty | Description |
AI Acceleration Card | 1 | 13 TOPS, Connected by Mini-PCIe interface |
Isolated 8-bit GPIO, 9-24V | 1 | Phoenix Terminal connector, connected by non-standard M.2 interface |
Isolated 8-bit GPIO with current loading, 9-26V | 1 | Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface |
Isolated 15-bit GPIO, 0-5V | 1 | Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface |
Isolated 15-bit GPIO with 7-in & 8-out, 12-24V | 1 | Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface |
4G Module | 1 | Connected by Mini-PCIe interface |
WiFi Module without AP mode | 1 | Connected by Mini-PCIe interface or Internal USB |
WiFi Module with AP mode | 1 | Connected by Mini-PCIe interface |
Dual channel CAN-Bus Module | 1 | Connected by Mini-PCIe interface |
