The IBOX-105-6C2L is based on Intel 4th~11th processors, supports 4K media, integrated connectivity up to Gigabit Wi-Fi for improved security and performance, sata slot support and dual-channel standalone DDR4 SO-DIMM RAM. I/O ports include 6 COM ports, 2 LAN ports, two USB 3.0; four USB 2.0, audio, and optional WiFi module. Multi-LAN and multi-COM design enables it to adapt to more working scenarios.
Model | IBOX-105-6C2L | |||
Supported OS | Win 7, Win 8, Win 10, Win11, Linux (Ubuntu, Dibian, Kali, CentOS, etc.); WES 7; Win 10 IoT | |||
CPU | Series/ Model | 4th~5th Gen. Intel® Core™ Processor Intel® Celeron® J1900 | 6th~8th Gen. Intel® Core™ Processor Intel® Celeron® 3865U/ 5205U | 11th Gen. Intel® Core™ Processor Intel® Celeron® 6305E |
TDP | Up to 15W | Up to 15W | Up to 28W | |
RAM | Type & Qty | 1* SO-DIMM Socket | 2* SO-DIMM Socket | 2* SO-DIMM Socket |
Frequency | DDR3L-1333/1600 MHz | DDR4-2133/2400 MHz | DDR4-3200 MHz | |
Capacity | Up to 8GB | Up to 32GB | Up to 64GB | |
Storage Device | M.2 | Not available | 1* M.2 2280 M-key slot, Support SATA/ PCIex4 Gen.3 NVMe SSD | |
SATA | 1* 2.5″ SATA3.0 Bay on board (6Gb/s); (Intel® Celeron® J1900 supports SATA2.0, 3Gb/s) | |||
MSATA | 1* mSATA3.0 slot on board (6Gb/s); (Intel® Celeron® J1900 supports mSATA2.0, 3Gb/s) | |||
I/O Interface | COM | 4* RS232 (COM1-4, DB9 connector); 2* RS232/485 (COM5-6, DB9 connector, switchable by jumper) | ||
Ethernet | 2* 1.0 GbE LAN, Intel i211/i210, RJ45 only (Only Intel® Core™ i3-5020U is working with intel i210 GbE LAN) | 2* 2.5 GbE LAN, Intel i225, RJ45 | ||
USB | 2* USB3.0; 4* USB2.0;1* Internal USB2.0; (Intel® Celeron® J1900: 1*USB3.0+5*USB2.0+1* Internal USB2.0) | 4* USB3.0; 2* USB2.0; 1* Internal USB 2.0 | 2* USB3.0; 4* USB2.0; 1* Internal USB2.0; | |
Video | 1* HDMI, Support 4096×2304@24Hz; 1* VGA, Support 1920×1200@60Hz; | 1* HDMI, Support 4096×2304@24Hz; 1* VGA, Support 1920×1200@60Hz; | 1* HDMI, Support 4096×2304@60Hz; 1* VGA, Support 1920×1200@60Hz; | |
Audio | 1* MIC, 1* SPK; With 5.1 channels HD Audio Codec Realtek ALC662 | 1* MIC, 1* SPK; With 5.1 channels HD Audio Codec Realtek ALC662 | 1* MIC, 1* SPK; With 7.1 channels HD Audio Codec Realtek ALC897 | |
SIM | 1* External SIM card slot connected to Mini-PCIe (PCIe+USB2.0) | |||
Power Supply | 12V DC; 1* DC Jack (5.5* 2.5mm) | |||
Others | 1* 8-bit GPIO (4-Inputs/4-Outputs, 0-5V Input Range) and 1* Remote Switch on Terminal Block (12-Pin, 3.81mm). 1* Auto-On Switch;1* PS/2 header | |||
Extended Capabilities | Additional Internal Interface | 1* Full Size Mini-PCIe with SIM card slot | ||
Environment | Operating Temperature | -10 ~ 55 °C w/ 0.7m/s Airflow | ||
Storage Temperature | -40 ~ 85 °C (-40~185 °F) | |||
Relative Humidity | 40 °C @ 95%, Non-Condensing | |||

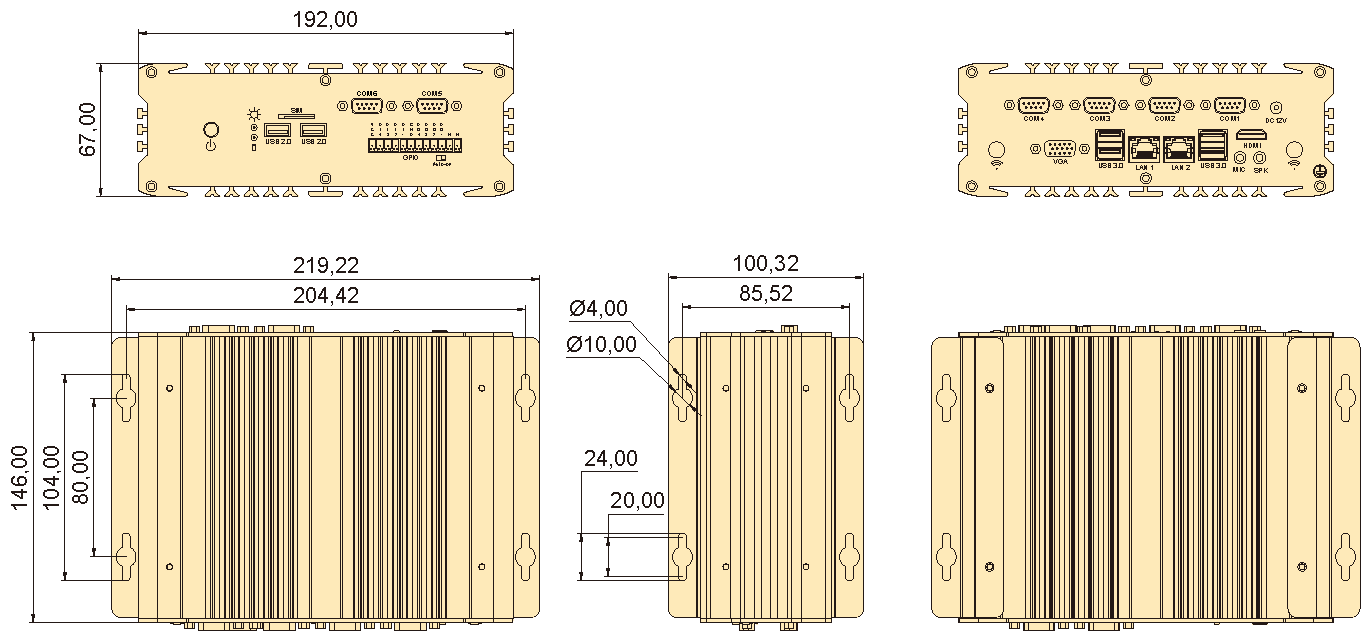

Physical Characteristics | Dimensions | 192* 67* 146 mm (W* H* D) | ||
Net Weight | 2.05 KG | |||
Regulation | EMC | CE/FCC Class B, CCC | ||
Safety | CE-LVD, RoHS, CCC |
CPU | Code Name | Total Cores | Total Threads | Max Turbo Frequency | Base Frequency | Cache | TDP | Memory Types | Integrated Graphics | |||||||||
Intel® Celeron® J1900 | Bay Trail | 4 | 4 | – | 2.00 GHz | 2 MB L2 Cache | 10W | DDR3 | Intel® HD Graphics | |||||||||
Intel® Core™ I5-4300U | Haswell | 2 | 4 | 2.90 GHz | 1.90 GHz | 3 MB Intel® Smart Cache | 15W | DDR3 | Intel® HD Graphics 4400 | |||||||||
Intel® Core™ I7-4600U | Haswell | 2 | 4 | 3.30 GHz | 2.10 GHz | 4 MB Intel® Smart Cache | 15W | DDR3 | Intel® HD Graphics 4400 | |||||||||
Intel® Core™ I3-5020U | Broadwell | 2 | 4 | – | 2.20 GHz | 3 MB | 15W | DDR3 | Intel® HD Graphics 5500 | |||||||||
Intel® Celeron® 3865U | Kaby Lake | 2 | 2 | – | 1.80 GHz | 2 MB Intel® Smart Cache | 15W | DDR4 | Intel® HD Graphics 610 | |||||||||
Intel® Celeron® 5205U | Comet Lake | 2 | 2 | – | 1.90 GHz | 2 MB | 15W | DDR4 | Intel UHD Graphics | |||||||||
Intel® Core™ I5-6360U | Skylake | 2 | 4 | 3.10 GHz | 2.00 GHz | 4 MB Intel® Smart Cache | 15W | DDR4 | Intel® Iris® Graphics 540 | |||||||||
Intel® Core™ I7-6650U | Skylake | 2 | 4 | 3.40 GHz | 2.20 GHz | 4 MB Intel® Smart Cache | 15W | DDR4 | Intel® Iris® Graphics 540 | |||||||||
Intel® Core™ I5-7200U | Kaby Lake | 2 | 4 | 3.10 GHz | 2.50 GHz | 3 MB Intel® Smart Cache | 15W | DDR4 | Intel® HD Graphics 620 | |||||||||
Intel® Core™ I5-7360U | Kaby Lake | 2 | 4 | 3.60 GHz | 2.30 GHz | 4 MB | 15W | DDR4 | Intel® Iris Plus Graphics 640 | |||||||||
Intel® Core™ I7-7600U | Kaby Lake | 2 | 4 | 3.90 GHz | 2.80 GHz | 4 MB Intel® Smart Cache | 15W | DDR4 | Intel® HD Graphics 620 | |||||||||
Intel® Core™ I3-8145U | Whiskey Lake | 2 | 4 | 3.90 GHz | 2.10 GHz | 4 MB Intel® Smart Cache | 15W | DDR4 | Intel® UHD Graphics 620 | |||||||||
Intel® Core™ I5-8265U | Whiskey Lake | 4 | 8 | 3.90 GHz | 1.60 GHz | 6 MB Intel® Smart Cache | 15W | DDR4 | Intel® UHD Graphics 620 | |||||||||
Intel® Core™ I7-8565U | Whiskey Lake | 4 | 8 | 4.60 GHz | 1.80 GHz | 8 MB Intel® Smart Cache | 15W | DDR4 | Intel® UHD Graphics 620 | |||||||||
Intel® Celeron® 6305E | Tiger Lake | 2 | 2 | – | 1.80 GHz | 4 MB Intel® Smart Cache | 15W | DDR4 | Intel UHD Graphics | |||||||||
Intel® Core™ I5-1135G7 | Tiger Lake | 4 | 8 | 4.20 GHz | 2.40 GHz | 8 MB Intel® Smart Cache | 12-28W | DDR4 | Intel® Iris® Xe Graphics; 80Eus | |||||||||
Intel® Core™ I7-1195G7 | Tiger Lake | 4 | 8 | 5.00 GHz | 2.90 GHz | 12 MB Intel® Smart Cache | 12-28W | DDR4 | Intel® Iris® Xe Graphics eligible; 96Eus |
Optional Items | Max Qty | Description |
Isolated 8-bit GPIO, 9-24V | 1 | Phoenix Terminal connector, connected by non-standard M.2 interface |
Isolated 8-bit GPIO with current loading, 9-26V | 1 | Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface |
Isolated 15-bit GPIO, 0-5V | 1 | Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface |
Isolated 15-bit GPIO with 7-in & 8-out, 12-24V | 1 | Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface |
4G Module | 1 | Connected by Mini-PCIe interface |
WiFi Module without AP mode | 1 | Connected by Mini-PCIe interface |
WiFi Module with AP mode | 1 | Connected by Mini-PCIe interface |
Dual channel CAN-Bus Module | 1 | Connected by Mini-PCIe interface or M.2 Interface |
Single GbE PoE LAN Module | 1 | Connected by Mini-PCIe interface |
Dual GbE PoE LAN Module | 1 | Connected by M.2 Interface |
