IBOX-104V2-4L6C

The IBOX-104V2-4L6C system is an ideal, application-ready, system platform solution with rich expansion slots. All electronic components are protected in a compact that is easy to embed in a customer’s own enclosure or use as a stand-alone unit when space is limited.
  • Ultra-thin design, 44mm height, Ideal for applications where product size is critical;
  • Single board design with rich I/O expansion, support diversity and rapid customization;
  • Multiple configurations available to suit different application;
  • Full sealed design with aluminum alloy cooling enclosure, dustproof, anti-vibration and anti-interference;
  • Low power consumption design, more suitable for simple applications;
  • Supports VESA & Wall mounting to fit different applications;

IBOX-104V2-4L6C Embedded Mini PC is equipped with Intel® Core™ I5, I7 Dual-core processors, which provide you with more computing power and cost advantages.SO-DIMM DDR4 provides 8GB of memory and supports multiple monitors via HDMI and VGA. It is dust, interference and temperature resistant. Rich I/O interfaces include 4LAN, 6 standalone COM, 2USB2.0, 2 USB3.0, 2USB 2.0, which can meet the requirements of most markets. The M.2 interface for Wi-Fi and SIM card slot for expansion allow for easy desktop installation.

Model

IBOX-104V2-4L6C

Supported OS

Win 7, Win 8, Win 10, Win11, Linux (Ubuntu, Dibian, Kali, CentOS, etc.); WES 7; Win 10 IoT

CPU

Processors Info.

Intel® Core™ I5-4300U, Dual-core, 1.90 GHz

Intel® Core™ I7-4600U, Dual-core, 2.10 GHz

RAM

SO-DIMM

1* SO-DIMM Socket, DDR3L-1333/1600 MHz, Up to 8GB

Storage

MSATA

1* mSATA3.0 slot on board (6Gb/s)

















I/O INTERFACE

COM

1* RS232/422/485 header (COM2); 1* RS232/485 header (COM3); 4* RS232 header (COM1/4/5/6);

Ethernet

4* Intel® i211 GbE LAN, support network wake-up/PXE function

USB

2* USB2.0; 2* USB3.0; 2* USB 2.0 header



Video

1* HDMI, support 3280×2000@60Hz; 1* VGA, support 1920×1200@60Hz;

1* HDMI, support 3200×2000@60Hz; 1* VGA, support 1920×1200@60Hz;

Audio

1* Line out; With 5.1 channels HD Audio Codec Realtek ALC662

1* Line out; With 5.1 channels HD Audio Codec Realtek ALC662

SIM

1* Built-in SIM card slot connected to Mini-PCIe



Power Supply

12V DC; 1* DC Jack (5.5* 2.5mm);

Optional 9-30V DC PWR module with Terminal Block (2-Pin, 5.08mm)



Other

1* Terminal Block (4-Pin, 3.81mm) with Remote Switch and Power Indicator 1* 8-bit GPIO header with 4 inputs and 4 outputs, Input voltage range: 0-5V;

Extended Capabilities



Additional Internal Interface



1* Full Size Mini-PCIe with SIM card slot (PCIe+USB2.0, support Wi-Fi+BT/ 4G)





Environment

Operating Temperature

-10 ~ 50 °C w/ 0.7m/s Airflow

Storage Temperature

-40 ~ 85 °C (-40~185 °F)

Relative Humidity

40 °C @ 95%, Non-Condensing



Physical Characteristics

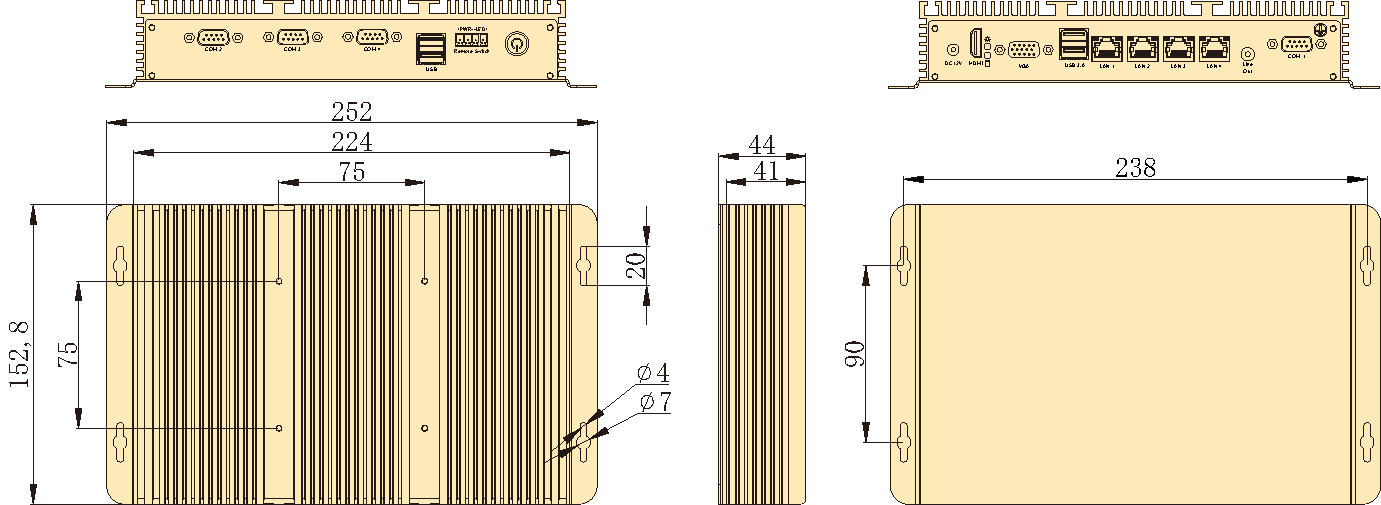

Dimensions

250* 44* 153 mm (W* H* D) (It has a higher version with 49mm solution)

Net Weight

1.5 KG



Regulation

EMC

CE/FCC Class B, CCC

Safety

CE-LVD, RoHS, CCC

 CPU

 Code Name

Total Cores

Total Threads

Max Turbo Frequency

Base Frequency

 Cache

 TDP

Memory Types

 Integrated Graphics

Intel® Core™ I5-4300U

Haswell

2

4

2.90 GHz

1.90 GHz

3 MB Intel® Smart Cache

15W

DDR3

Intel® HD Graphics 4400

Intel® Core™ I7-4600U

Haswell

2

4

3.30 GHz

2.10 GHz

4 MB Intel® Smart Cache

15W

DDR3

Intel® HD Graphics 4400



Optional Items

Max Qty

Description

DC9-30V TO DC 12V PWR module

1

Phoenix Terminal connector, Power supply voltage conversion module, connected by header

Isolated RS-232

6

DB9 or Phoenix Terminal connector, connected by header

Isolated 8-bit GPIO, 9-24V

1

Phoenix Terminal connector, connected by header

4G Module

1

Connected by M.2 interface

WiFi Module without AP mode

1

Connected by M.2 interface

Dual channel CAN-Bus Module

1

Connected by M.2 interface
