The IBOX-103-4L2C-J4125 Embedded Mini PC with Intel® Celeron® J4125, processor gives you more computing power and cost advantages. Dual-channel SO-DIMM DDRM Dual-channel SO-DIMM DDR4 provides up to 8 GB of memory with HDMI support 4096×2304@24Hz. it is dust-proof, anti-interference, and high temperature resistant. A wide range of I/O interfaces including 4LAN, 2COM, 4USB3.0 meets the requirements of most markets. M.2 interface for Wi-Fi and SIM card slot for expansion as well as built-in Bluetooth. Desktop installation can be easily achieved.
MODEL | IBOX-103-4L2C-J4125 | |
Supported OS | Win 7, Win 8, Win 10, Win11, Linux (Ubantu, Dibian, Kali, CentOS, etc.); WES 7; Win 10 IoT | |
CPU | Intel® Celeron® J4125, 4 Cores, 4 Threeads, Burst Fre. 2.70 GHz, Base Fre. 2.00 GHz, TDP 10W | |
RAM | SO-DIMM | 1* DDR4 SO-DIMM Socket, Dual-channel 2400 MHz, up to 8GB |
Storage Devices | SATA | 1* 2.5″ SATA3.0 Bay on board (6Gb/s) |
MSATA | 1* mSATA3.0 slot on board (6Gb/s) | |
I/O INTERFACE | COM | 2* DB9 COM ports, COM1 support RS232+COM2 support RS232/485 |
Ethernet | 4* Intel® I225V 2.5G GbE LAN, support network wake-up/PXE function | |
USB | 4* USB 3.0 | |
Video | 1* HDMI, support 4096×2304@24Hz | |
SIM | 1* External SIM card slot connected to Mini-PCIe | |
Power supply | 12V DC; 1* DC Jack (5.5* 2.5mm) | |
Other | 1* 4-bit GPIO, Terminal Block (6-Pin, 3.81mm), 4-Inputs/4-Outputs, 0-5V Input Range; 1* Auto-On Switch | |
Extended Capabilities | Additional Internal Interface | 1* Full Size Mini-PCIe with SIM card slot (PCIe+USB2.0); 1* M.2 2230 E-key Slot (PCIe+USB2.0, support WiFi+BT) |
Environment | Operating Temperature | -10 ~ 55 °C w/ 0.7m/s Airflow |
Storage Temperature | -40 ~ 85 °C (-40~185 °F) | |
Relative Humidity | 40 °C @ 95%, Non-Condensing | |

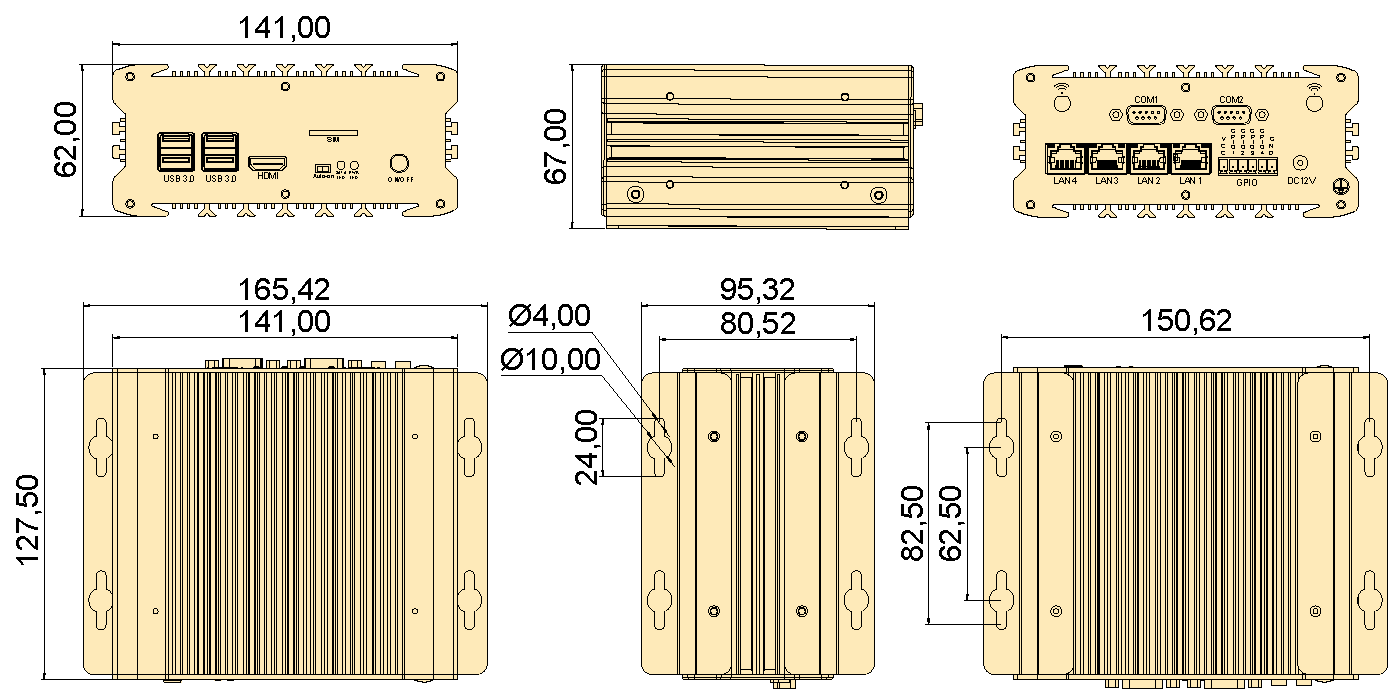

Physical Characteristics | Dimensions | 141* 62* 127.5 mm (W* H* D) |
Net Weight | 1.2 KG | |
Regulation | EMC | CE/FCC Class B, CCC |
Safety | CE-LVD, RoHS, CCC | |
CPU | Code Name | Total Cores | Total Threads | Max Turbo Frequency | Base Frequency | Cache | TDP | Memory Types | Integrated Graphics |
Intel® Celeron® J4125 | Tiger Lake | 4 | 4 | – | 2.00 GHz | 4 MB | 10W | DDR4 | Intel® UHD Graphics 600 |
Optional Items | Max Qty | Description |
AI Acceleration Card | 1 | 13 TOPS, Connected by Mini-PCIe interface |
4G Module | 1 | Connected by Mini-PCIe interface |
WiFi Module without AP mode | 1 | Connected by Mini-PCIe interface or M.2 interface |
WiFi Module with AP mode | 1 | Connected by Mini-PCIe interface |
Dual channel CAN-Bus Module | 1 | Connected by Mini-PCIe interface |
