The IBOX-103-2L2C-J4125 is based on the Intel® Celeron® J4125 quad-core 2.0 GHz with CPU clock speeds up to 2.70 GHz, 4K media support, integrated connectivity up to Gigabit Wi-Fi for improved security and performance, support for sata slots, and dual-channel standalone DDR4 SO-DIMM memory.I/O Ports include two LAN ports, four USB 3.0; four USB 2.0 ports, audio ports and optional WiFi module. Lightweight and miniature, easy to use and install.
MODEL | Optiion A&B | IBOX-103-2L2C-J4125A | IBOX-103-2L2C-J4125B |
Supported OS | Win 7, Win 8, Win 10, Win11, Linux (Ubuntu, Dibian, Kali, CentOS, etc.); WES 7; Win 10 IoT | ||
CPU | Intel® Celeron® J4125, 4 Cores, 4 Threeads, Burst Fre. 2.70 GHz, Base Fre. 2.00 GHz, TDP 10W | ||
RAM | SO-DIMM | 1* DDR4 SO-DIMM Socket, Dual-channel 2400 MHz, Up to 8GB | |
Storage Devices | M.2 | 1* M.2 2280 M-key slot,support SATA3.0 SSD | |
SATA/ mSATA | 1* mSATA3.0 slot on board (6Gb/s) | 1* 2.5″ SATA3.0 Bay on board (6Gb/s) | |
I/O INTERFACE | COM | 2* RS232/485, DB9 connector; Connected to Mini-PCIe, support CANbus | 2* RS232/ RS485, DB9 connectors |
Ethernet | 2* RTL8111H GbE Network, support network wake-up/PXE function | ||
USB | 4* USB 3.0; 4* USB 2.0 | ||
Video | 1* HDMI, support 4096×2304@24Hz; 1* VGA, support 1920×1200@60Hz; | 2* HDMI, support 4096×2304@24Hz; | |
Audio | 1* LINE out+1* MIC in; With 7.1 channels HD Audio Codec Realtek ALC897 | 1* LINE out+1* MIC in; With 5.1 channels HD Audio Codec Realtek ALC662 | |
SIM | 1* External SIM card slot connected to Mini-PCIe & M.2 B-key slot | 1* External SIM card slot connected to Mini-PCIe | |
Power supply | 12V DC; 1* DC Jack (5.5* 2.5mm) | ||
Other | 1* Remote Switch Terminal (2-Pin, 3.81mm); 1* Auto-On Switch | ||
Extended Capabilities | Additional Internal Interface | 1* Full Size Mini-PCIe (PCIe+USB2.0); [1] 1* M.2 3052 B-key slot (PCIe+USB2.0); [2] MiniPCIe and M.2 are connected to a same SIM card slot. | 1* Full Size Mini-PCIe with SIM card slot (PCIe+USB2.0); 1* M.2 2230 E-key Slot (PCIe+USB2.0, support WiFi+BT) |
Environment | Operating Temperature | -10 ~ 50 °C w/ 0.7m/s Airflow | |
Storage Temperature | -40 ~ 85 °C (-40~185 °F) | ||
Relative Humidity | 40 °C @ 95%, Non-Condensing | ||

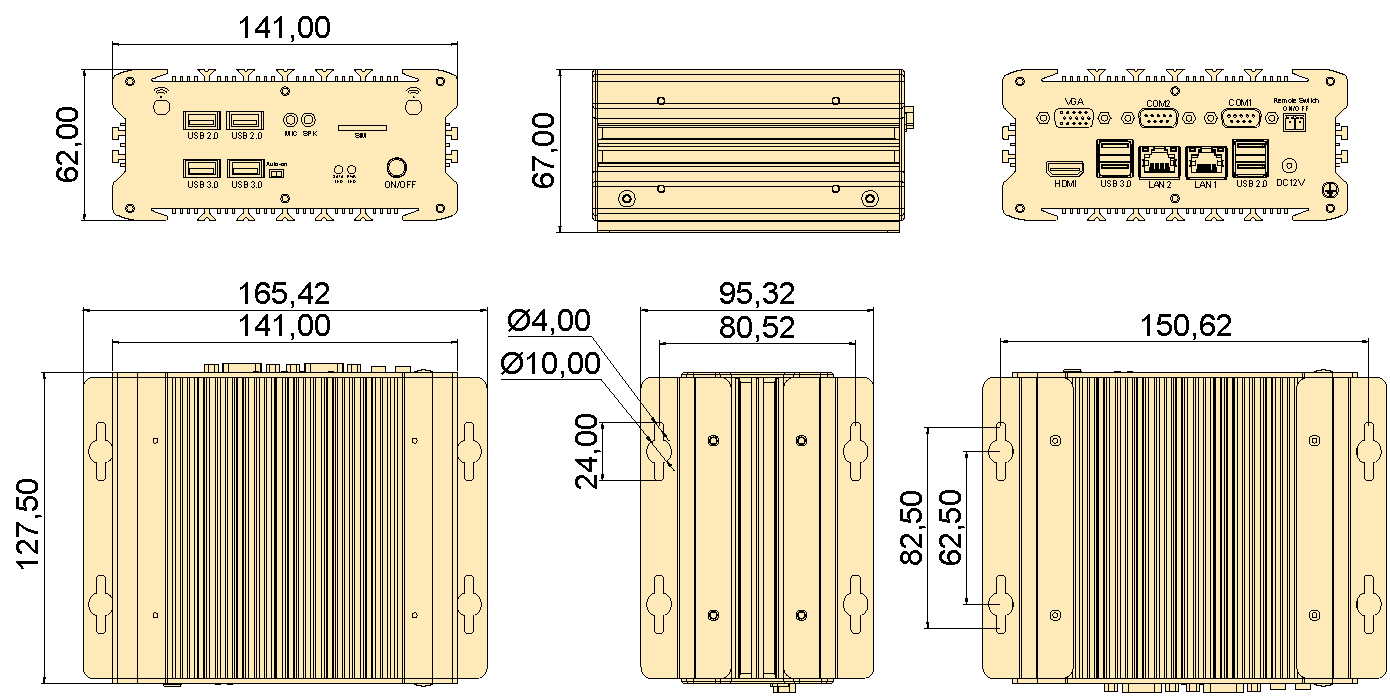

Physical Characteristics | Dimensions | 141* 62* 127.5 mm (W* H* D) | |
Net Weight | 1.35 KG | ||
Regulation | EMC | CE/FCC Class B, CCC | |
Safety | CE-LVD, RoHS, CCC |
CPU | Code Name | Total Cores | Total Threads | Max Turbo Frequency | Base Frequency | Cache | TDP | Memory Types | Integrated Graphics |
Intel® Celeron® J4125 | Tiger Lake | 4 | 4 | / | 2.00 GHz | 4 MB | 10W | DDR4 | Intel® UHD Graphics 600 |
Optional Items | Max Qty | Description |
AI Acceleration Card | 1 | 13 TOPS, Connected by Mini-PCIe interface |
5G Module | 1 | Connected by M.2 interface |
4G Module | 1 | Connected by Mini-PCIe interface |
WiFi Module without AP mode | 1 | Connected by Mini-PCIe interface or M.2 interface |
WiFi Module with AP mode | 1 | Connected by Mini-PCIe interface |
Dual channel CAN-Bus Module | 1 | Connected by Mini-PCIe interface |
