AEOLUS-SV9-6L2C-1P

AEOLUS-SV9-6L2C-1P is a compact industrial edge controller designed for stable performance, high network connectivity, and scalable expansion.

Powered by Intel® 6th–9th Gen Core™ desktop processors, it delivers reliable computing capability for industrial automation, networking gateways, visual processing, and intelligent control applications.

  • Powered by 6th–9th Gen Intel® Core™ processors (up to 65W TDP), ensuring stable and efficient industrial computing performance.
  • Integrated 6× Intel® Gigabit LAN ports supporting WoL and PXE, ideal for networking appliances, industrial gateways, and data communication nodes.
  • 2× RS232 / RS485 switchable serial ports for flexible device communication and industrial fieldbus integration.
  • High-speed storage with M.2 2280 SSD (SATA / PCIe) support, enabling fast system response and real-time data handling.
  • 1× PCIe x8 expansion slot, supporting network acceleration, frame grabbers, or other specialized industrial cards to enhance scalability.
  • Supports 4G LTE / Wi-Fi wireless connectivity via Mini-PCIe, enabling remote monitoring and edge deployment networking.
  • Wide DC input 12V / 19V / 24V, strong resistance to power fluctuations and industrial electrical interference.
  • Versatile mechanical design supporting wall-mount, vertical installation, and DIN-rail mounting for flexible deployment.
  • Industrial thermal solution with fan-assisted airflow and copper heat pipe dissipation, ensuring stable operation under continuous workload environments.

AEOLUS-SV9-6L2C-1P combines dependable Intel desktop-class computing with rich network interfaces, flexible serial communication, PCIe expansion capability, and robust industrial power protection.

With strong adaptability, reliable thermal engineering, and multiple installation options, it is well-suited for industrial networking, automation control, security, transportation systems, and distributed edge computing scenarios.

Model

AEOLUS-SV9-6L2C-1P

Supported OS

Win10, Win 11, Linux (Ubuntu, Dibian, Kali, CentOS,ect.), Win 10 IoT

Chipset

Model

Intel® H110 Chipset, TDP 6W

vPRO Tech

Non-supported





CPU

Socket

Intel® Desktop Processors Socket LGA1151

Series

6th-9th Gen. Intel® Core™ i7/ i5 /i3 Processor

TDP

Up to 65W

Graphic

Intel® HD Graphics 530 for 6th Gen. processor

Intel® HD Graphics 630 for 7th Gen.processor

Intel® UHD Graphics 630 for 8-9th Gen. processor

BIOS

AMI UEFI BIOS; External Clearable CMOS button

RAM

SO-DIMM

2* SO-DIMM DDR4 2666 MHz Socket, Capacity up to 64GB



M.2

1* M.2 (NGFF) 2280 M-key slot, support SATA 6Gbps/PCIe 3.0 x4 Adaptive SSD;









I/O Interface

COM

2* RS232/RS485, switchable via BIOS

Ethernet

5* Intel i210-AT GbE LAN, 1* Intel i219-V GbE LAN; Supports wake-on-LAN, PXE

USB

4* USB 3.0;

1* Internal USB 2.0;

2* 4-Pin USB 2.0 internal header

Video

1* HDMI (Max Resolution: 3840×2160 @30Hz);

Audio

1* Mic-in + Line-out wafer

SIM

1* Nano SIM connected to Mini-pcie slot, support 4G wireless

Power Supply

DC 12V/19V/24V, Auto detected, support RVP/OVP/OCP;  2* 2-PIN green connector, 5.08mm

Extended

Capabilities

Additional

Internal Interface

1* Full Size Mini-PCIe1 slot, PCIE x1 GEN3 + USB 2.0, optional CAN/LAN/WiFi ect.

1* Full Size Mini-PCIe (USB2.0), support 4G;



Environment

Operating Temp.

-10 ~ 60°C w/ 0.7m/s Airflow

Storage Temp.

-20 ~ 75°C (-4~167 °F)

Relative Humidity

40°C @95%, Non-Condensing

Physical

Characteristics

Dimensions

215* 86.1* 166.8 mm  (W* H* D)

Net Weight

2.30 KG

Regulation

EMC

CE/FCC Class B, CCC

Safety

CE-LVD, RoHS, CCC

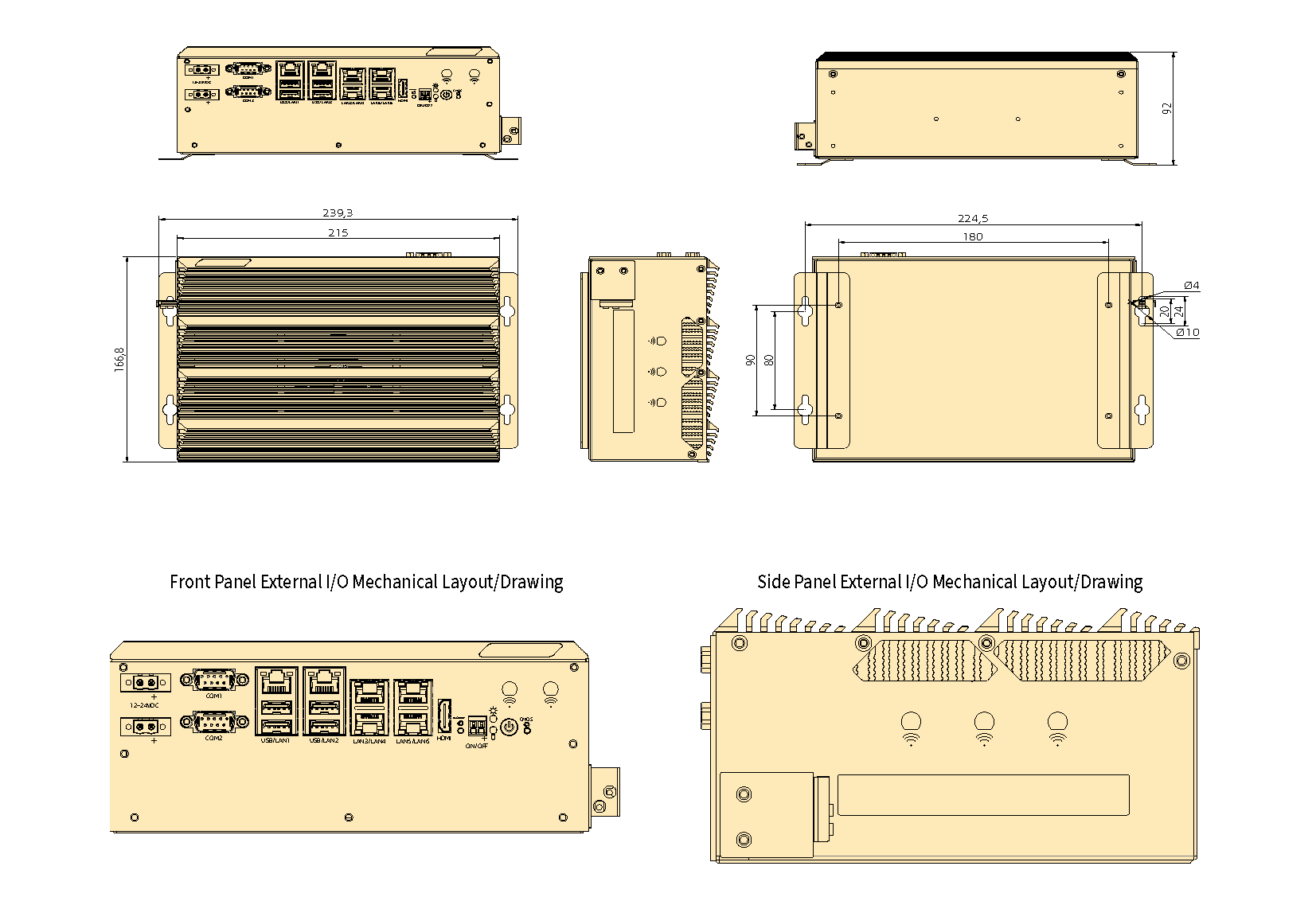

AEOLUS-SV9-6L2C-1P尺寸图

CPU

  Code Name Total Cores Total Threads

Max Turbo Frequency

 Base Frequency  Cache  TDP Memory Types  Integrated Graphics
Intel® Core™ I3-6100 Sky Lake 2 4 – 3.70 GHz 3 MB Intel® Smart Cache 51W DDR4 Intel® HD Graphics 530
Intel® Core™ I3-7100 Kaby Lake 2 4 – 3.90 GHz 3 MB Intel® Smart Cache 51W DDR4 Intel® HD Graphics 630
Intel® Core™ I3-8100 Coffee Lake 4 4 – 3.60 GHz 6 MB Intel® Smart Cache 65W DDR4 Intel® HD Graphics 630
Intel® Core™ I3-9100 Coffee Lake 4 4 4.20 GHz 3.60 GHz 6 MB Intel® Smart Cache 65W DDR4 Intel® HD Graphics 630
Intel® Core™ I5-6500 Sky Lake 4 4 3.60 GHz 3.20 GHz 6 MB Intel® Smart Cache 65W DDR4 Intel® HD Graphics 530
Intel® Core™ I5-7500 Kaby Lake 4 4 3.80 GHz 3.40 GHz 6 MB Intel® Smart Cache 65W DDR4 Intel® HD Graphics 530
Intel® Core™ I5-8400 Coffee Lake 6 6 4.00 GHz 2.80 GHz 9 MB Intel® Smart Cache 65W DDR4 Intel® HD Graphics 630
Intel® Core™ I5-9500 Coffee Lake 6 6 4.40 GHz 3.00 GHz 9 MB Intel® Smart Cache 65W DDR4 Intel® HD Graphics 630
Intel® Core™ I7-6700 Sky Lake 4 8 4.00 GHz 3.40 GHz 8 MB Intel® Smart Cache 65W DDR4 Intel® HD Graphics 530
Intel® Core™ I7-7700 Kaby Lake 4 8 4.20 GHz 3.60 GHz 8 MB Intel® Smart Cache 65W DDR4 Intel® HD Graphics 630
Intel® Core™ I7-8700 Coffee Lake 6 12 4.60 GHz 3.20 GHz 12 MB Intel® Smart Cache 65W DDR4 Intel® HD Graphics 630
Intel® Core™ I7-9700 Coffee Lake 8 8 4.70 GHz 3.00 GHz 12 MB Intel® Smart Cache 65W DDR4 Intel® HD Graphics 630

Optional Items

Max Qty

Description

4G Module

1

Connected by Mini-PCIe interface

USB 16 bit GPIO

1

Connected by USB interface

WiFi Module without AP mode

1

Connected by Mini-PCIe interface

EtherCAT

1

EtherCAT Master, supporting a maximum of 16 slaves (servos + I/O) at a 1ms cycle
  • Powered by 6th–9th Gen Intel® Core™ processors (up to 65W TDP), ensuring stable and efficient industrial computing performance.
  • Integrated 6× Intel® Gigabit LAN ports supporting WoL and PXE, ideal for networking appliances, industrial gateways, and data communication nodes.
  • 2× RS232 / RS485 switchable serial ports for flexible device communication and industrial fieldbus integration.
  • High-speed storage with M.2 2280 SSD (SATA / PCIe) support, enabling fast system response and real-time data handling.
  • 1× PCIe x8 expansion slot, supporting network acceleration, frame grabbers, or other specialized industrial cards to enhance scalability.
  • Supports 4G LTE / Wi-Fi wireless connectivity via Mini-PCIe, enabling remote monitoring and edge deployment networking.
  • Wide DC input 12V / 19V / 24V, strong resistance to power fluctuations and industrial electrical interference.
  • Versatile mechanical design supporting wall-mount, vertical installation, and DIN-rail mounting for flexible deployment.
  • Industrial thermal solution with fan-assisted airflow and copper heat pipe dissipation, ensuring stable operation under continuous workload environments.

AEOLUS-SV9-6L2C-1P combines dependable Intel desktop-class computing with rich network interfaces, flexible serial communication, PCIe expansion capability, and robust industrial power protection.

With strong adaptability, reliable thermal engineering, and multiple installation options, it is well-suited for industrial networking, automation control, security, transportation systems, and distributed edge computing scenarios.
