AEOLUS-TL9-2L2C

AEOLUS-TL9-2L2C is a Z390 machine vision industrial PC designed for control automation, intelligent vision, HMI systems, and demanding industrial workloads.

Powered by 8th–9th Gen Intel® Core™ processors and engineered with industrial-grade reliability, it delivers powerful computing, stable communication, and strong data processing capability for modern industrial environments.

  • Supports 8th–9th Gen Intel® Core™ i7 / i5 / i3 processors with Intel® Z390 chipset—this Z390 machine vision industrial PC delivers stable desktop-class performance up to 65W TDP.
  • Dual Intel® Gigabit Ethernet ports supporting Wake-on-LAN and PXE, suitable for industrial networking, equipment connectivity, and remote maintenance.
  • 2 × isolated RS232 / RS485 serial ports with capacitive isolation and TVS surge protection, ensuring reliable communication in harsh electrical environments.
  • Dual M.2 high-speed storage architecture, supporting PCIe Gen3 NVMe and SATA SSDs, delivering fast data throughput for automation, machine vision, and edge computing workloads.
  • Supports HDMI and DisplayPort 4K output, making it ideal for HMI panels, visualization terminals, and high-definition industrial displays.
  • Industrial thermal architecture with open grille design, cooling fans, and copper heat pipes, ensuring stable performance under continuous heavy workloads.
  • Wireless-ready design supporting 5G and Wi-Fi modules via M.2 and Mini-PCIe for remote connectivity and edge cloud collaboration.
  • Wide-range 19–36V DC power input, offering strong resistance to power fluctuation and industrial interference.
  • Flexible mounting options including wall-mount, vertical mount, and DIN-rail, suitable for control cabinets and compact deployment environments.

AEOLUS-TL9-2L2C, as a Z390 machine vision industrial PC, targets industrial applications requiring high computing power, stable communication, reliable serial connectivity, and strong visualization capability, rather than pure multi-LAN networking tasks.

With its Z390 platform, dual Intel Gigabit LAN, isolated serial interfaces, dual M.2 high-speed storage, advanced cooling design, wide-range power support, and flexible installation options, it is well-suited for industrial automation control, machine vision platforms, intelligent manufacturing equipment, transportation systems, energy management, and edge computing deployments.

Model

AEOLUS-TL9-2L2C

Supported OS

Win 10, Win 11, Linux (Ubuntu, Dibian, Kali, CentOS, ect.), Win 10 IoT

Chipset

Model

Intel® Z390 Chipset, TDP 6W

vPRO Tech

Non-supported





CPU

Socket

Intel® Desktop Processors Socket LGA1151

Series

8th-9th Gen. Intel® Core™ i7/ i5 /i3 Processor

TDP

Up to 65W

Graphic

Intel® UHD Graphics 630 for 8-9th Gen. processor, 32Eus

BIOS

AMI UEFI BIOS

RAM

SO-DIMM

1* SO-DIMM DDR4 2400~2666 MHz Socket, Capacity up to 32GB

Storage

M.2

1* M.2 (NGFF) 2280 M-key slot, support PCIex4 Gen.3 NVMe/ SATA3.0 SSD;

1* M.2 (NGFF) 2280 M-key slot, SATA 6Gbps/PCIe 3.0 x4 Adaptive SSD;















I/O Interface

COM

2* RS232/RS485, switchable via side switch, supporting digital capacitive isolation, ESD/EFT/Surge protection; Please note that COM3 is exclusively used for communication with the I/O board light source module

Ethernet

2* Intel i210-AT GbE LAN, Supports wake-on-LAN, PXE

USB

4* USB 3.0;

2* USB 2.0;

1* USB 2.0 internal header

Video

1* HDMI (support Resolution: 3840×2160 @30Hz/ 1920×1080@60Hz);

1*DP, support 3840×2160@60Hz;

Audio

5.1-Channel HD Audio Codec – Realtek ALC897, 1*Audio Output (SPK) + 1*Microphone Input (Mic-In)

SIM

1* Nano SIM connected to M.2 Key-B 3042/3052, support 5G wireless

Power Supply

DC 19V-36V; 4-PIN green connector, 5.08mm



Featured Interface

1* External Clearable CMOS;

1* Restore Button;

1* Power-on Startup DIP Switch

1* Single-Chip Watchdog & 255-Level Interval Timer;

Extended

Capabilities

Additional

Internal Interface

1* M.2 2230 E-key slot, PCIE x1 Gen3 + USB 2.0, support WI-FI + BT;

1* Full-Size Mini-PCIe, PCIE x1 Gen3 + USB 2.0, optional CAN/ LAN/ COM/ Wi-Fi expansion etc.



Environment

Operating Temp.

-10 ~ 60 °C w/ 0.7m/s Airflow

Storage Temp.

-40 ~ 85 °C (-40~185 °F)

Relative Humidity

40 °C @95%, Non-Condensing

Physical

Characteristics

Dimensions

215* 57.13* 166.8 mm  (W* H* D)

Net Weight

2.25 KG

Regulation

EMC

CE/FCC Class B, CCC

Safety

CE-LVD, RoHS, CCC

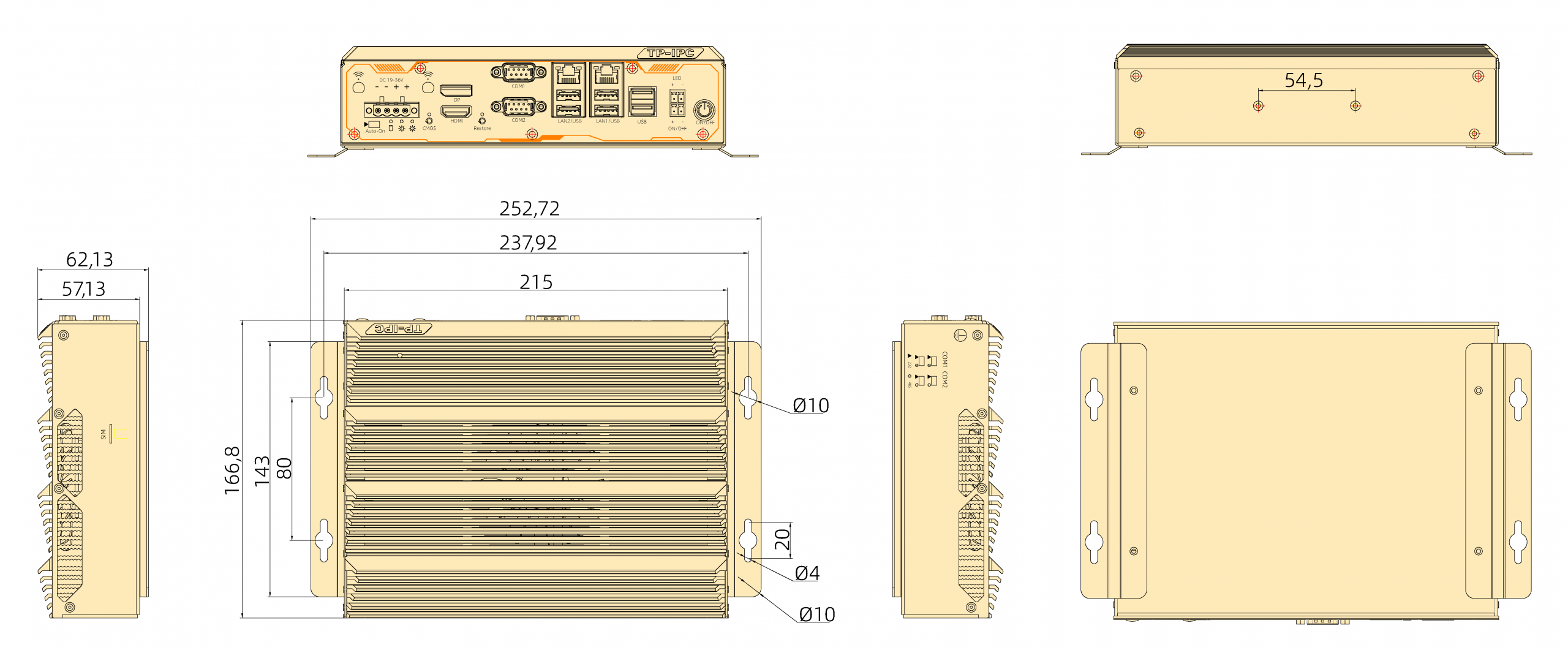

Z390 machine vision industrial PC AEOLUS-TL9-2L2C drawing

CPU

Code Name

Total Cores

Total Threads

Max Turbo Frequency

Base Frequency

Cache

TDP

Memory Types

Integrated Graphics

Intel® Core™ I3-8100

Coffee Lake

4

4

–

3.60 GHz

6 MB Intel® Smart Cache

65W

DDR4

Intel® UHD Graphics 630

Intel® Core™ I3-9100

Coffee Lake

4

4

4.20 GHz

3.60 GHz

6 MB Intel® Smart Cache

65W

DDR4

Intel® UHD Graphics 630

Intel® Core™ I5-8400

Coffee Lake

6

6

4.00 GHz

2.80 GHz

9 MB Intel® Smart Cache

65W

DDR4

Intel® UHD Graphics 630

Intel® Core™ I5-9500

Coffee Lake

6

6

4.40 GHz

3.00 GHz

9 MB Intel® Smart Cache

65W

DDR4

Intel® UHD Graphics 630

Intel® Core™ I7-8700

Coffee Lake

6

12

4.60 GHz

3.20 GHz

12 MB Intel® Smart Cache

65W

DDR4

Intel® UHD Graphics 630

Intel® Core™ I7-9700

Coffee Lake

6

8

4.70 GHz

3.00 GHz

12 MB Intel® Smart Cache

65W

DDR4

Intel® UHD Graphics 630

Optional Items

Max Qty

Description

5G Module

1

Connected by M.2 interface

WiFi Module without AP mode

1

Connected by M.2 interface
