• 21.5-inch widescreen industrial panel PC optimized for control cabinets and HMI interfaces
• High I/O configuration with 4 Gigabit LAN ports and 6 serial COM ports for industrial devices
• Fanless, sealed aluminum alloy enclosure for dust resistance and stable 24/7 operation
• Supports projected capacitive, resistive, or non-touch display options
• Designed for industrial control, automation systems, and multi-network environments
The IPPC-104V2-4L6C-21W is a 21.5-inch widescreen industrial panel PC designed for industrial control and HMI applications that require high I/O density and reliable long-term operation.
Featuring a fanless, sealed aluminum alloy enclosure, the system provides effective heat dissipation while resisting dust, vibration, and electromagnetic interference in harsh industrial environments. The widescreen display improves visibility for control interfaces, data monitoring, and production management systems.
Equipped with 4 Gigabit LAN ports and 6 serial COM ports, the IPPC-104V2-4L6C-21W is well suited for multi-device connectivity, PLC integration, and networked industrial systems. Flexible CPU options and wide operating system support make it adaptable to a wide range of automation and embedded control scenarios.
LCD Display | Touchscreen | ||||||
Display Type | 21.5″ TFT LCD (LED backlight) | Touchscreen Type | Projected Capacitive | Non-Touchscreen | |||
Resolution | 1920*1080 | Touchscreen Method | Ten point | – | |||
Luminance | 250 cd/m2 (Typ.) | Surface | 6H | 6H | |||
Viewing Angle | 89/89/89/89 (Typ.)(CR>=10) | Durability | – | – | |||
Contrast Ratio | 3000 : 1 (Typ.) ( Transmission ) | Transparency | 85±3% | >88% | |||
System | |||||||
CPU | Model | Intel® Core™ I5-4300U, Dual-core, 1.90 GHz | Intel® Core™ I7-4600U, Dual-core, 2.10 GHz | ||||
RAM | SO-DIMM | 1* SO-DIMM Socket, DDR3L-1333/1600 MHz, Up to 8GB | |||||
Storage | MSATA | 1* mSATA3.0 slot on board (6Gb/s) | |||||
Supported OS | Windows & Linux | Win 7, Win 8, Win 10, Win11, Linux (Ubuntu, Dibian, Kali, CentOS, etc.); WES 7; Win 10 IoT | |||||
I/O INTERFACE | COM | 1* RS232/422/485 header (COM2); 1* RS232/485 header (COM3); 4* RS232 header (COM1/4/5/6); | |||||
Ethernet | 4* Intel® i211 GbE LAN, support network wake-up/PXE function | ||||||
USB | 2* USB2.0; 2* USB3.0; 2* USB 2.0 header | ||||||
Video | 1* HDMI, support 3280×2000@60Hz; 1* VGA, support 1920×1200@60Hz; | 1* HDMI, support 3200×2000@60Hz; 1* VGA, support 1920×1200@60Hz; | |||||
Audio | 1* Line out; With 5.1 channels HD Audio Codec Realtek ALC662 | 1* Line out; With 5.1 channels HD Audio Codec Realtek ALC662 | |||||
SIM | 1* Built-in SIM card slot connected to Mini-PCIe | ||||||
Power Supply | 12V DC; 1* DC Jack (5.5* 2.5mm); Optional 9-30V DC PWR module with Terminal Block (2-Pin, 5.08mm) | ||||||
Other | 1* Terminal Block (4-Pin, 3.81mm) with Remote Switch and Power Indicator 1* 8-bit GPIO header with 4 inputs and 4 outputs, Input voltage range: 0-5V; | ||||||
Extended Capabilities | Additional Internal Interface | 1* Full Size Mini-PCIe with SIM card slot (PCIe+USB2.0, support Wi-Fi+BT/ 4G) | |||||
Environment | Operating Temperature | Non-Touch: 0~50°C; Capacitive: -20~60°C; (w/ 0.7m/s Airflow) | |||||
Storage Temperature | Non-Touch: 0 ~ 50°C; Capacitive: -20 ~ 60°C | ||||||
Relative Humidity | 40 °C @ 95%, Non-Condensing | ||||||

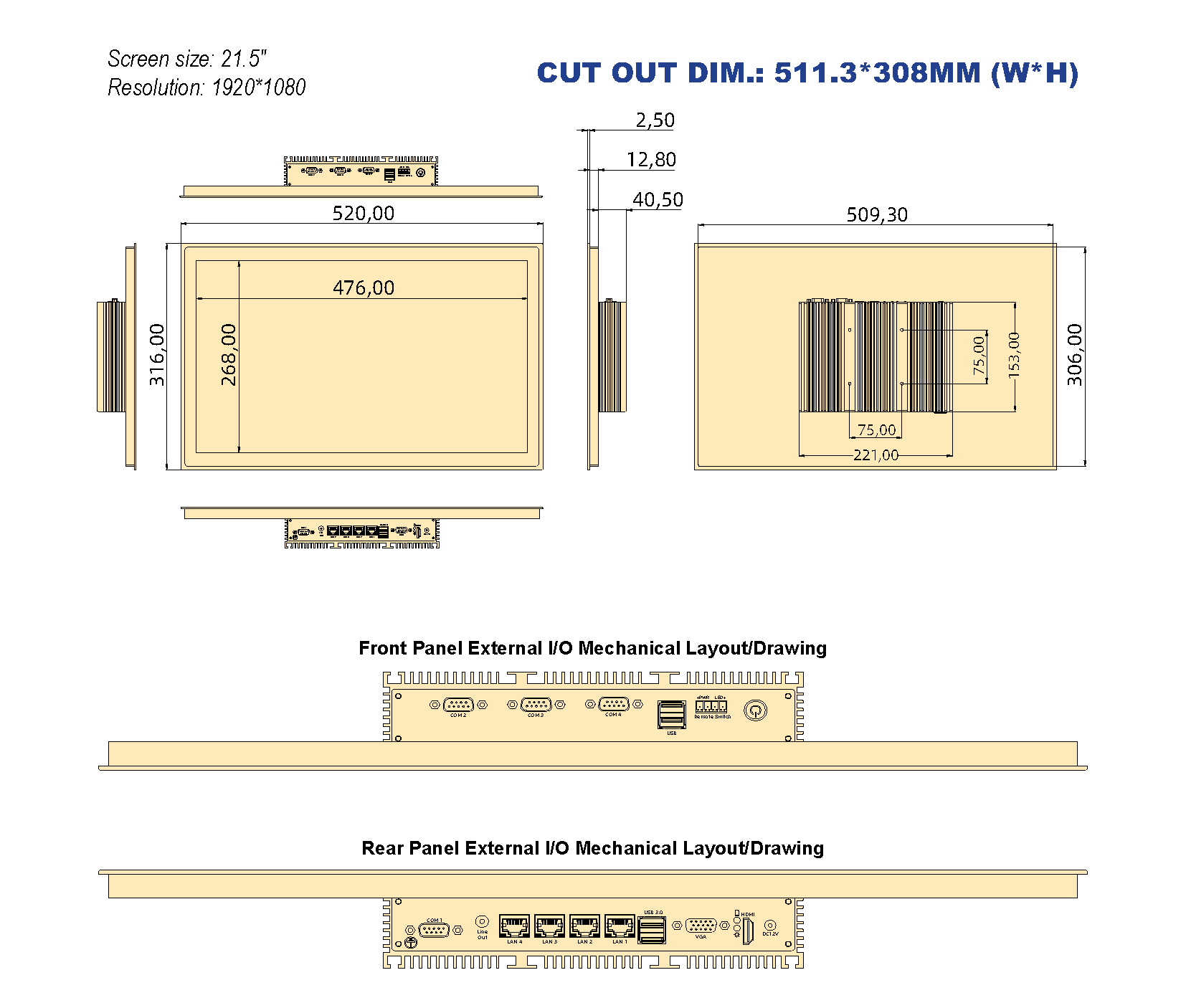

Physical Characteristics | Dimensions | 520*316*55.8 mm | |||||
Net Weight | Around 6.3kg (The final weight is subject to actual ordering configuration) | ||||||
Regulation | EMC | CE/FCC Class B, CCC | |||||
Safety | CE-LVD, RoHS, CCC | ||||||
CPU | Code Name | Total Cores | Total Threads | Max Turbo Frequency | Base Frequency | Cache | TDP | Memory Types | Integrated Graphics |
Intel® Core™ I5-4300U | Haswell | 2 | 4 | 2.90 GHz | 1.90 GHz | 3 MB Intel® Smart Cache | 15W | DDR3 | Intel® HD Graphics 4400 |
Intel® Core™ I7-4600U | Haswell | 2 | 4 | 3.30 GHz | 2.10 GHz | 4 MB Intel® Smart Cache | 15W | DDR3 | Intel® HD Graphics 4400 |
Optional Items | Max Qty | Description |
DC9-30V TO DC-12V PWR module | 1 | PCB, Power supply voltage conversion module, connected by header |
Isolated 8-bit GPIO, 9-26V | 1 | Phoenix Terminal connector, connected by jumper |
Isolated RS-232 | 6 | DB9 or Phoenix Terminal connector, connected by header |
Isolated 8-bit GPIO, 9-24V | 1 | Phoenix Terminal connector, connected by header |
4G Module | 1 | Connected by M.2 interface |
5G Module | 1 | Connected by M.2 interface |
WiFi Module without AP mode | 1 | Connected by M.2 interface |
