IBOX-602-5C3L-2P

The IBOX-602-5C3L-2P is a rugged fanless industrial computer featuring dual PCIe/PCI expansion slots for flexible hardware integration. Powered by Intel desktop processors, it includes four isolated serial COM ports, three Gigabit Ethernet ports, and supports multiple storage drives with RAID. Built for harsh environments, it offers reliable and stable operation for advanced automation and edge computing.

  • 9th/8th/7th/6th Gen Intel® Core™ i7/i5/i3 (Skylake, Kaby Lake and Coffee Lake) with Desktop-grade Intel® Z370 chipset, support processor up to 65W TDP;
  • Up to 4 front-access 2.5″ SSD trays, RAID 0, 1, 5 supported, besides that, it support working with up two 3* PCIe/PCI slot;
  • 2* M.2 sockets, 1* M.2 Key M, 1* M.2 Key E for SSD and WiFi, 1* Mini PCIe slot comes with SIM card slot support 4G LTE Module;
  • IBOX-602-5C3L series is offering 4* isolated serial port supporting RS232/485 switchable by internal jumper;
  • 9V to 36V DC Power Input with Surge Protection, configurable Ignition Power Control;
  • Fully enclosed full aluminum alloy with fanless cooling system offering anti-interference structure and stable system with Modular parts cable-free design for better vibration resistance.

IBOX-602-5C3L-2P Adopts 6th to 9th generation Intel®, Intel® Celeron® G4900 processor 2* SO-DIMM socket memory, supports up to 32GB, 1×HDMI (optional DP), 1×VGA, supports dual-screen synchronous display 11×USB2.0, 5×COM, 3×LAN Network port , 1 x SATA3.0, 1 x mSTATA, 1 x M.2, multi PCIe x16 Slot ,External SIM card slot connected to Mini-PCIe. Supports Wake-on-Network, diskless boot, and power on by incoming call. Suitable for retail, self-service and industrial all-in-one machines. The high power consumption of this series also brings superb capacity and better performance at the same time.



/* 添加一些基本的样式来使表格自适应 */
.table-container {
width: 100%;
overflow-x: auto;
}

table {
width: 100%;
border-collapse: collapse;
}

table, th, td {
border: 1px solid black;
}

th, td {
padding: 8px;
text-align: left;
}

Model

IBOX-602-5C3L-2P

Supported OS

Win 7, Win 8, Win 10, Win 11, Linux (Ubuntu, Dibian, Kali, CentOS, etc.); WES 7; Win 10 IoT

Chipset

Intel® Z370 Chipset

CPU

Processor Socket

Intel® Desktop Processors Socket LGA1151

Series

6th Gen. Intel® Core™ Processor

Intel® Celeron® G4900 Processor

7th-9th Gen. Intel® Core™ Processor

TDP

Up to 65W

54W

Up to 65W

Graphic

Intel® HD Graphics 530

Intel® UHD Graphics 610

7th Gen: Intel® HD Graphics 630

8th/ 9th Gen: Intel® UHD Graphics 630

RAM

Type&Qty

2* SO-DIMM Socket

2* SO-DIMM Socket

2* SO-DIMM Socket

Frequency

DDR4-1866/2133 MHz

DDR4-2400 MHz

DDR4-2400/2666 MHz

Capacity

Up to 32GB

Up to 32GB

Up to 32GB

Storage Device

SATA

1* 2.5″ SATA3.0 Bay on board (6Gb/s); 3* SATA3.0 connectors (6Gb/s), Support RAID (0/1/5)

MSATA

1* mSATA3.0 slot on board (6Gb/s)

M.2

1* M.2 (NGFF) 2280 M-key slot, support PCIex4 Gen.3 NVMe/ SATA3.0 SSD

I/O Interface

COM

4* Isolated DB9 COM Ports with ESD/EFT/Surge protection (COM1-4, support RS232/485, switchable by jumper); 1* RS232 with DB9 connector (COM5); 1* RS232 header (COM6)

Ethernet

3* Intel® i211 GbE LAN, RJ45 connector

USB

8* USB 3.0; 2* USB2.0; 1* Internal USB2.0

Video

1* HDMI, Support 4096×2304@24Hz, (Optional 1* DP, Support 4096 x 2304@60Hz); 1* VGA, Support 1920×1200@60Hz;

Audio

1* MIC, 1* SPK; With 5.1 channels HD Audio Codec Realtek ALC662

SIM

1* External SIM card slot connected to Mini-PCIe

Power Supply

9V-36V DC; 1* 4-Pin DC Power Jack (Circular DIN Connectors, Full-Shield)

Other

1* 8-bit GPIO, Terminal Block (12-Pin, 3.81mm), 4-Inputs/4-Outputs, 0-5V Input Range 1* Terminal Block (4-Pin, 3.81mm Pitch) with Remote Switch and Power Indicator

1* PS/2 for keyboard/ mouse; 1* Auto-On Switch; 1* TPM header (2*10-pin)

Extended Capabilities

Additional Internal Interface

1* PCIe x4+1* PCIe x16 or 1* PCI+1* PCIe x4 or 2* PCI or 1* PCIe x1+1* PCIe x4 or 1* PCI+1* PCIe x16; (PCIe Gen.3) 1* Full Size Mini-PCIe with SIM card slot; (PCIe+USB2.0);

1* M.2 2230 E-key Slot (PCIe+USB2.0, support WiFi+BT)

Environment

Operating Temperature

-10 ~ 55 °C w/ 0.7m/s Airflow

Storage Temperature

-40 ~ 85 °C (-40~185 °F)

Relative Humidity

40 °C @ 95%, Non-Condensing

Physical Characteristics

Dimensions

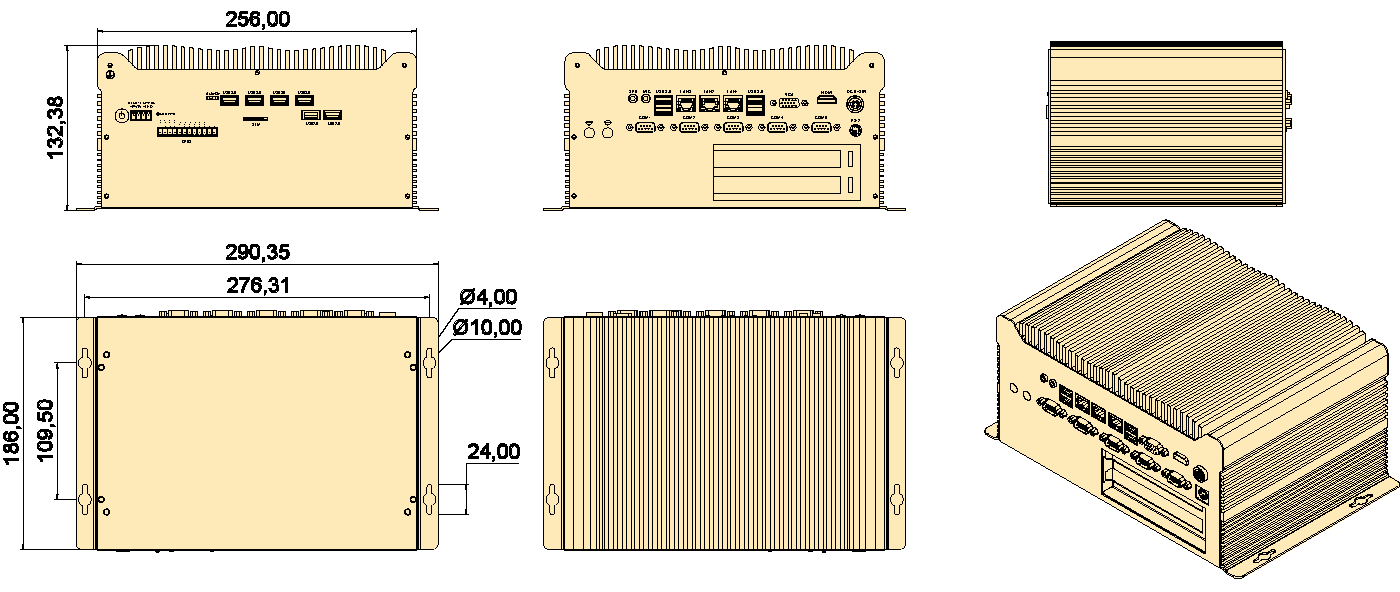

290.35* 132.38* 186 mm (W* H* D)

Net Weight

4.55 KG

Regulation

EMC

CE/FCC Class B, CCC

Safety

CE-LVD, RoHS, CCC



/* 添加一些基本的样式来使表格自适应 */
.table-container {
width: 100%;
overflow-x: auto;
}

table {
width: 100%;
border-collapse: collapse;
}

table, th, td {
border: 1px solid black;
}

th, td {
padding: 8px;
text-align: left;
}

 CPU

 Code Name

Total Cores

Total Threads

Max Turbo Frequency

Base Frequency

 Cache

 TDP

Memory Types

 Integrated Graphics

Intel® Core™ I3-6100

Skylake

2

4

–

3.70 GHz

3 MB Intel® Smart Cache

51 W

DDR4

Intel® HD Graphics 530

Intel® Core™ I5-6500

Skylake

4

4

3.60 GHz

3.20 GHz

6 MB Intel® Smart Cache

65 W

DDR4

Intel® HD Graphics 530

Intel® Core™ I7-6700

Skylake

4

8

4.00 GHz

3.40 GHz

8 MB Intel® Smart Cache

65 W

DDR4

Intel® HD Graphics 530

Intel® Celeron® G4900

Coffee Lake

2

2

–

3.10 GHz

2 MB Intel® Smart Cache

54 W

DDR4

Intel® UHD Graphics 610

Intel® Core™ I3-7100

Kaby Lake

2

4

–

3.90 GHz

3 MB Intel® Smart Cache

51 W

DDR4

Intel® HD Graphics 630

Intel® Core™ I5-7400

Kaby Lake

2

4

3.50 GHz

3.00 GHz

6 MB Intel® Smart Cache

65 W

DDR4

Intel® HD Graphics 630

Intel® Core™ I7-7700

Kaby Lake

4

8

4.20 GHz

3.60 GHz

8 MB Intel® Smart Cache

65 W

DDR4

Intel® HD Graphics 630

Intel® Core™ I3-8100

Coffee Lake

4

4

–

3.60 GHz

6 MB Intel® Smart Cache

65 W

DDR4

Intel® UHD Graphics 630

Intel® Core™ I5-8500

Coffee Lake

6

6

4.10 GHz

3.00 GHz

9 MB Intel® Smart Cache

65 W

DDR4

Intel® UHD Graphics 630

Intel® Core™ I7-8700

Coffee Lake

6

12

4.60 GHz

3.20 GHz

12 MB Intel® Smart Cache

65 W

DDR4

Intel® UHD Graphics 630

Intel® Core™ I3-9300

Coffee Lake

4

4

4.30 GHz

3.70 GHz

8 MB Intel® Smart Cache

62 W

DDR4

Intel® UHD Graphics 630

Intel® Core™ I5-9400

Coffee Lake

6

6

4.10 GHz

2.90 GHz

9 MB Intel® Smart Cache

65 W

DDR4

Intel® UHD Graphics 630

Intel® Core™ I7-9700

Coffee Lake

8

8

4.70 GHz

3.00 GHz

12 MB Intel® Smart Cache

65 W

DDR4

Intel® UHD Graphics 630

Intel® Core™ I9-9900

Coffee Lake

8

16

5.00 GHz

3.10 GHz

16 MB Intel® Smart Cache

65 W

DDR4

Intel® UHD Graphics 630



/* 添加一些基本的样式来使表格自适应 */
.table-container {
width: 100%;
overflow-x: auto;
}

table {
width: 100%;
border-collapse: collapse;
}

table, th, td {
border: 1px solid black;
}

th, td {
padding: 8px;
text-align: left;
}

Optional Items

Max Qty

Description

Isolated RS-232

1

DB9 or Phoenix Terminal connector, connected by header

Non-Isolated RS-232

1

DB9 or Phoenix Terminal connector, connected by header

Non-Isolated RS-422

1

DB9 or Phoenix Terminal connector, connected by header with a transform module

Non-Isolated RS-485

1

DB9 or Phoenix Terminal connector, connected by header with a transform module

Isolated 8-bit GPIO, 9-24V

1

Phoenix Terminal connector, connected by header

Isolated 8-bit GPIO with current loading, 9-26V

1

Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface

Isolated 15-bit GPIO, 0-5V

1

Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface

Isolated 15-bit GPIO with 7-in & 8-out, 12-24V

1

Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface

4G Module

1

Connected by Mini-PCIe interface

WiFi Module without AP mode

1

Connected by Mini-PCIe interface, M.2 interface or internal USB interface

WiFi Module with AP mode

1

Connected by Mini-PCIe interface

Dual channel CAN-Bus Module

2

Connected by Mini-PCIe or M.2 interface

Dual/Quad channel CAN-Bus Module

1

Connected by PCIe Interface

Dual GbE PoE LAN Module

1

Connected by Mini-PCIe Interface

Quad GbE PoE LAN Module

1

Connected by PCIe Interface
