IBOX-106PLUS-2L4C-1P

The IBOX-106PLUS-2L4C-1P is a compact, fanless industrial computer designed for space-constrained applications. It supports a wide range of Intel processors (4th to 11th Gen) and features key industrial interfaces, including 6 protected serial ports, dual Ethernet, and flexible expansion (PCIe/PCI & Mini-PCIe). Built with a rugged, all-aluminum chassis for wide-temperature and wide-voltage operation, it is certified for CE, FCC, and CCC, making it ideal for automation and embedded systems.
  • Support up to new Intel® Iris® Xe graphics, the platform offers up to 2.95 times faster graphics performance
  • 4-11th Generation Intel Core processors optional with rich expansion slot offers strong scalability
  • Up to 6 isolated serial ports with ESD, EFT and Surge Protection offers clients strong anti-interference capability
  • Wide voltage supported, comes with a PCIex4 or a PCI expansion slot
  • Full aluminum alloy anti-interference structure with modular parts design offers stronger system stability
  • Fully enclosed with fanless cooling system and cable-free design for better vibration resistance
  • Multiple mounting options available, DIN-Rail, Wall-Mount, Embedded

IBOX-106PLUS-2L4C-1P Embedded Mini PC is equipped with Intel 4th~11th and Celeron processors, which provide you with more computing power and cost advantages.Multi-SO-DIMM DDR4 delivers from 8 to 64GB of RAM and supports multiple monitors via HDMI and VGA. It is dust-, interference- and thermally-resistant. Rich I/O interfaces include 2LAN, 4COM, 2* Internal COM headers on board, multi PCI and PCIE, max to 4 USB2.0, 2 USB3.0; 1 built-in USB2.0 to meet the needs of most markets. Desktop installation is easy, with a Wi-Fi module and a SIM card slot for expansion. Multi-LAN and multi-COM design enables it to adapt to more working scenarios.

ModelIBOX-106-2L4C-1P
Supported OSWin 7, Win 8, Win 10, Win11, Linux (Ubuntu, Debian, Kali, CentOS, etc.); WES 7; Win 10 IoT
CPUSeries/ Model4th~5th Gen. Intel® Core™ Processor6th~8th Gen. Intel® Core™ Processor Intel® Celeron® 3865U11th Gen. Intel® Core™ Processor
TDPUp to 15WUp to 15WUp to 28W
RAMType & Qty1* SO-DIMM Socket2* SO-DIMM Socket2* SO-DIMM Socket
FrequencyDDR3L-1333/1600 MHzDDR4-2133/2400 MHzDDR4-3200 MHz
CapacityUp to 8GBUp to 32GBUp to 64GB
Storage DeviceSATA1* 2.5″ SATA3.0 Bay on board (6Gb/s)
MSATA1* mSATA3.0 slot on board (6Gb/s)
I/O InterfaceCOM4* Isolated DB9 COM Ports with ESD/EFT/Surge protection (COM1-4, support RS232/485, switchable by jumper); 2* Internal COM headers on board (COM5-6, RS232)
Ethernet2* 1.0 GbE LAN, Intel i211/i210, RJ45 only2* 2.5 GbE LAN, Intel i225, RJ45
USB2* USB3.0; 4* USB2.0; 1* Internal USB2.04* USB3.0; 2* USB2.0; 1* Internal USB 2.02* USB3.0; 4* USB2.0; 1* Internal USB2.0
Video1* HDMI, Support 4096×2304@24Hz; 1* VGA, Support 1920×1200@60Hz;1* HDMI, Support 4096×2304@24Hz; 1* VGA, Support 1920×1200@60Hz;1* HDMI, Support 4096×2304@60Hz; 1* VGA, Support 1920×1200@60Hz;
Audio1* MIC, 1* SPK; With 5.1 channels HD Audio Codec Realtek ALC6621* MIC, 1* SPK; With 5.1 channels HD Audio Codec Realtek ALC6621* MIC, 1* SPK; With 7.1 channels HD Audio Codec Realtek ALC897
SIM1* External SIM card slot connected to Mini-PCIe
Power Supply9-36V DC; 1* Terminal Block (2-Pin, 5.08mm)
Others1* 8-bit GPIO, Terminal Block (12-Pin, 3.81mm), 4-Inputs/4-Outputs, 0-5V Input Range; 1* Terminal Block (4-Pin, 3.81mm Pitch) with Remote Switch and Power Indicator; 1* Auto-On Switch

Extended

Capabilities

PCIe1* PCIe2.0 x2 with x4 socket or 1* PCI1* PCIe3.0 x4 or 1* PCI
Mini-PCIe1* Full Size Mini-PCIe (PCIe+USB2.0) with SIM card slot
EnvironmentOperating Temperature-10 ~ 55 °C w/ 0.7m/s Airflow
Storage Temperature-40 ~ 85 °C (-40~185 °F)
Relative Humidity40 °C @ 95%, Non-Condensing

Physical

Characteristics

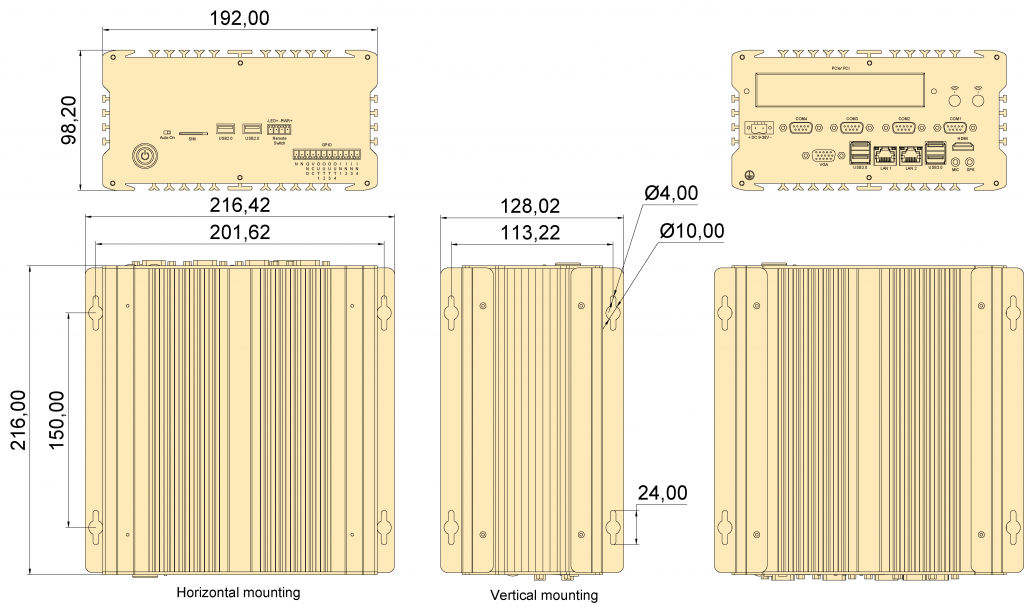

Dimensions192* 118.2* 215.6 mm (W* H* D)
Net Weight2.85 KG (The actual weight is subject to the final configuration)
RegulationEMCCE/FCC Class B, CCC
SafetyCE-LVD, RoHS, CCC

CPU

Total Cores

Total Threads

Max Turbo Frequency

Base Frequency

Memory Types

Integrated Graphics

Intel® Core™ I5-4300U

2

4

2.90 GHz

1.90 GHz

DDR3

Intel® HD Graphics 4400

Intel® Core™ I7-4600U

2

4

3.30 GHz

2.10 GHz

DDR3

Intel® HD Graphics 4400

Intel® Core™ I3-5020U

2

4

–

2.20 GHz

DDR3

Intel® HD Graphics 5500

Intel® Celeron® 3865U

2

2

–

1.80 GHz

DDR3

Intel® HD Graphics 610

Intel® Core™ I5-6360U

2

4

3.10 GHz

2.00 GHz

DDR4

Intel® Iris® Graphics 540

Intel® Core™ I7-6650U

2

4

3.40 GHz

2.20 GHz

DDR4

Intel® Iris® Graphics 540

Intel® Core™ I5-7200U

2

4

3.10 GHz

2.50 GHz

DDR4

Intel® HD Graphics 620

Intel® Core™ I7-7600U

2

4

3.90 GHz

2.80 GHz

DDR4

Intel® HD Graphics 620

Intel® Core™ I3-8145U

2

4

3.90 GHz

2.10 GHz

DDR4

Intel® UHD Graphics 620

Intel® Core™ I5-8265U

4

8

3.90 GHz

1.60 GHz

DDR4

Intel® UHD Graphics 620

Intel® Core™ I7-8565U

4

8

4.60 GHz

1.80 GHz

DDR4

Intel® UHD Graphics 620

Intel® Core™ I5-1135G7

4

8

4.20 GHz

2.40 GHz

DDR4

Intel®Iris Xe Graphics; 80Eus

Intel® Core™ I7-1165G7

4

8

4.70 GHz

2.80 GHz

DDR4

Intel®Iris Xe Graphics; 96Eus

Optional ItemsMax QtyDescription
Isolated RS-2322DB9 or Phoenix Terminal connector, connected by header
Non-Isolated RS-2322DB9 or Phoenix Terminal connector, connected by header
RS-422 With Surge Protection2DB9 or Phoenix Terminal connector, connected by header, with additional RS232 TO RS422 Module
RS-485 With Surge Protection2DB9 or Phoenix Terminal connector, connected by header, with additional RS232 TO RS485 Module
Isolated 8-bit GPIO, 9-24V1Phoenix Terminal connector, connected by non-standard M.2 interface
Isolated 8-bit GPIO with current loading, 9-26V1Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface
Isolated 15-bit GPIO, 0-5V1Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface
Isolated 15-bit GPIO with 7-in & 8-out, 12-24V1Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface
4G Module1Connected by Mini-PCIe interface
WiFi Module1Connected by Mini-PCIe interface or internal USB interface
Dual Channel CANBus Module1Connected by Mini-PCIe interface
