IBOX-105-ARM-2L6C

IBOX-105-ARM-2L6C is an ARM embedded industrial PC built on an intelligent ARM computing platform for industrial automation and edge applications.

Designed for motion control, data acquisition, automation equipment, and industrial gateways, it combines AI-ready processing, rich serial communication, robust fanless reliability, and low power consumption in a compact embedded form factor.

  • This ARM embedded industrial PC is designed for industrial automation, edge intelligence, and long-term 24/7 deployment.
  • Powered by quad-core ARM Cortex®-A55 processor up to 2.0 GHz.
  • Integrated NPU delivers up to 1 TOPS AI performance for lightweight AI inference and intelligent edge processing.
  • In addition, it supported 4K@60fps H.265/H.264/VP9 decoding, 1080p@60fps encoding, and 8 MP ISP with HDR, ideal for vision analytics and multimedia applications.
  • Moreover, it provides rich industrial I/O including 2× Gigabit Ethernet ports and up to 6× RS232 / RS485 serial interfaces, supporting automation devices, sensors, and industrial controllers.
  • Fully enclosed fanless aluminum alloy chassis, providing superior EMI shielding, vibration resistance, dust protection, and long-term operational stability
  • Modular expansion design with cable-free internal architecture, improving reliability while simplifying customization and maintenance
  • Multiple mounting options including DIN-rail, wall-mount, and embedded installation, supporting flexible deployment in industrial environments

The IBOX-105-ARM-2L6C is an ARM embedded industrial PC belonging to our Arm-Based Computing Solution series, designed for scalable and reliable embedded industrial deployments.

Compared with traditional x86-based industrial computers, it offers lower power consumption, silent fanless operation, and improved reliability, making it suitable for smart automation, industrial data gateways, motion control systems, and long-term 24/7 edge deployments.

Model

IBOX-105-ARM-2L6C

Supported OS

Android 11, Linux (Ubuntu, Debian, Kali, CentOS, etc.)

CPU

ARM Rockchip

RK3588, Quad-core Cortex-A76 + Quad-core Cortex-A55

RK3576, Quad-core Cortex-A72 + Quad-core Cortex-A53

RK3568, Quad-core Cortex-A55, Clock speed up to 2.0GHz



RAM

Memory Type

SDRAM LPDDR4X Memory on board

SDRAM LPDDR5 Memory on board

SDRAM LPDDR4X Memory on board

Capacity

8GB

16GB

4GB

8GB

8GB

4GB

2GB



Storage Device

eMMC 5.1

64G

128G

32G

64G

64G

32G

16G

Form Factor

1* TF Card

1* TF Card

2* SATA3.0 7P Connector; 1* TF Card Slot

M.2

1* M.2 B-Key 2242/3052, PCIe x1/USB3.0/SATA, Support 5G/4G/ NVMe/SATA SSD

















I/O Interface

COM

2* RS232/RS485, COM1/2;

4* RS232, 2-wire, COM3-6;



Ethernet

1* Realtek RTL8211F GbE Ethernet Controller;

1* Realtek RTL8211H GbE Ethernet Controller;

2* Realtek RTL8211F -CG GbE Ethernet Controller

2 * Realtek GBE LAN Chip (RJ45, 10/100/1000 Mbps)

CANBus

Optional 2* CANBus header, support CAN FD, CANBus 2.0

USB

1* USB3.0/ OTG ; 3 * USB3.0; 6* USB2.0 (Header, Internal)

1* USB3.0/ OTG ; 3 * USB3.0;

5* USB2.0 (Header, Internal), one USB 2.0 co- lay for Mini-PCIe

1 * USB3.0/OTG (TYPE-A, Rear IO); 3 * USB2.0;

6 * USB2.0 (Header, Internal)

Video

1* HDMI, max 1920*1080@60Hz;

1* HDMI, max 8K@60Hz

1* HDMI, max 4096×2304@60Hz

Optional with LVDS-HDMI daughter card to support second display, support max 1920*1080@60Hz;

Audio

2* Wafer, L/R Amplifier;

1* Wafer, Lin-out + MIC;

SIM

1* SIM Crad for Mini-PCIe and M.2 key-B

1, SIM1 Card Wafer, connected to Mini-PCIe;

1, Nano SIM1 Slot, connected to Mini-PCIe;

1, SIM2 Card Wafer, connected to M.2 key-B;

1* Mini-PCIe Slot with 1* External Nano SIM card slot/ 1* Internal SIM card slot

Power Supply

12V DC; 1* DC Jack (5.5* 2.5mm); Optional 9-36VDC Power Input with Terminal Block (2-Pin, 5.08mm)

Other

8 * GPIO; 1 * Recovery Button; 1 * Power Button Header; 1 * System Reset Header; 1 * Power LED Header; 2 * TP I2C Header; 1 * System FAN Header; 2 * Debug Header; 1 * Cash Header

Extended

Capabilities

Additional Interface

1 * M.2 (NGFF) Key-B Slot (PCIE 3.0/PCIE2.0/USB3.0/SATA, 2242/3052);

1* Mini-PCIe, support PCIe x1/SATA/USB2.0

Functionality Extension

WiFi, 4G, 5G, CANBus



Environment

Operating Temp.

-10 ~ 70 °C w/ 0.7m/s Airflow

Storage Temp.

-40 ~ 85 °C (-40~185 °F)

Relative Humidity

40 °C @ 95%, Non-Condensing

Physical

Characteristics

Dimensions

192* 67* 145 mm (W* H* D)

Net Weight

2.05 KG

Regulation

EMC

CE/FCC Class B, CCC

Safety

CE-LVD, RoHS, CCC

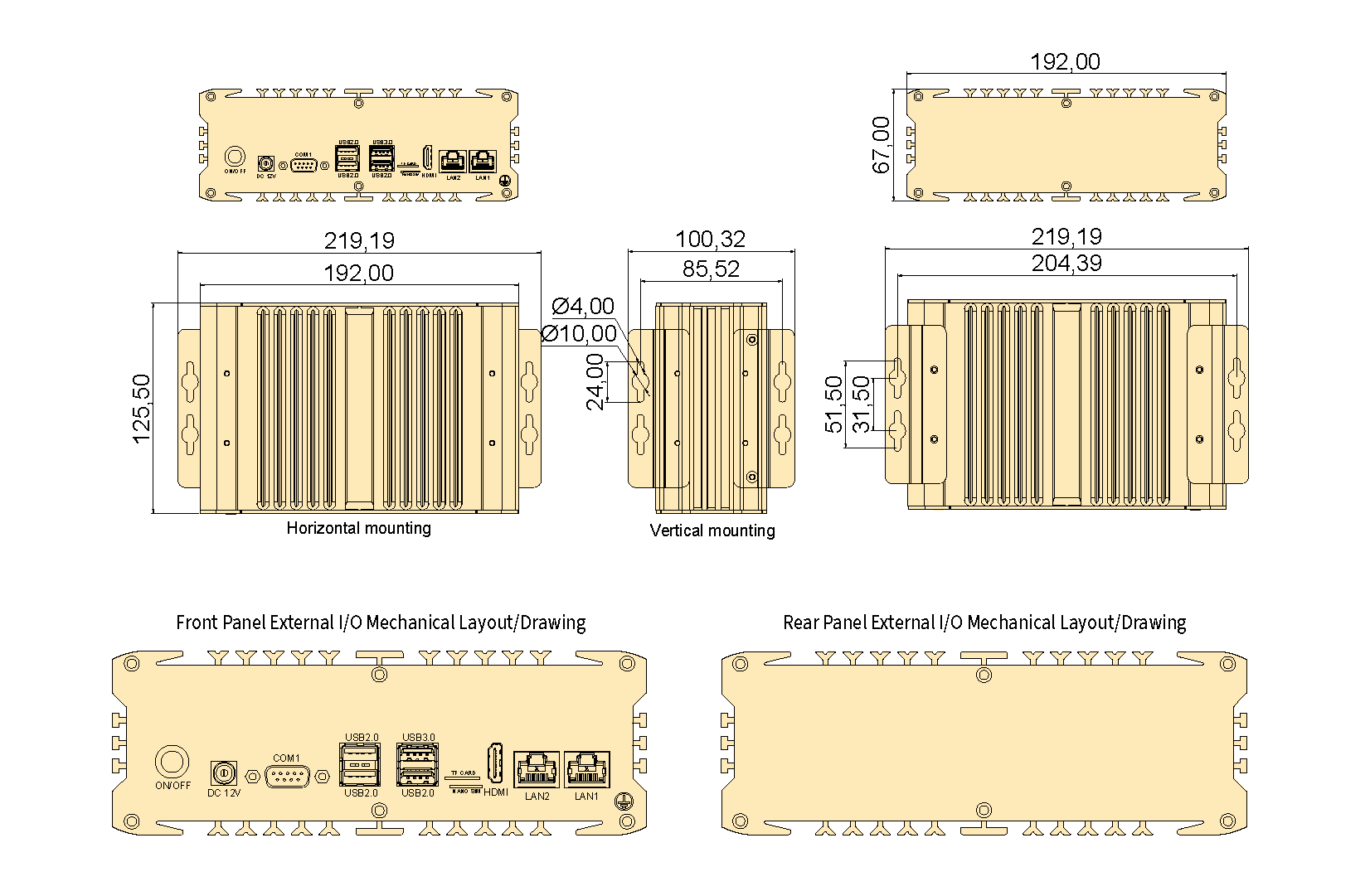

IBOX-105-ARM-2L6C ARM embedded industrial PC dimensions

Model

RK3568

CPU

Quad-Core ARM Cortex-A55, up to 2.0GHz



GPU

ARM G52 2EE

Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1

High performance dedicated 2D processor

NPU

Support 1T



Multi-Media

Support 4K 60fps H.265/H.264/VP9 decoder

Support 1080P 60fps H.265/H.264 encoder

Support 8M ISP with HDR

Optional Items

Max Qty

Description

AI Acceleration Card

1

13 TOPS, Connected by Mini-PCIe interface or M.2 interface

4G Module

1

Connected by Mini-PCIe interface or M.2 interface

5G Module

1

Connected by M.2 interface

Dual channel CAN-Bus Module

1

Connected by Mini-PCIe interface
