IBOX-104V2-2L6C-XP

The IBOX-104V2-2L6C-XP is a compact Multi COM Industrial PC built for legacy industrial systems requiring stable serial communication and long-term reliability.

With six COM ports and dual LAN interfaces, this Multi COM Industrial PC is widely used in PLC control, industrial automation, HMI terminals, and factory equipment operating in 24/7 environments.

• Multi COM Industrial PC designed for legacy automation and control systems
• Up to 6 serial COM ports supporting RS232 / RS485 communication
• Dual Gigabit LAN ports for industrial networking and device integration
• Ultra-slim fanless aluminum enclosure for silent and maintenance-free operation
• Supports Windows XP, Windows 7 / 10, Linux, and Windows IoT
• Flexible storage with mSATA and SATA support for SSD or HDD
• Dual Mini-PCIe expansion for Wi-Fi, Bluetooth, or 4G LTE modules
• Designed for stable 24/7 industrial operation in harsh environments

The IBOX-104V2-2L6C-XP is a Multi COM Industrial PC purpose-built for industrial environments where serial communication reliability and legacy system compatibility are critical.

Equipped with up to six COM ports and dual Gigabit LAN, this Multi COM Industrial PC enables direct connection to PLCs, sensors, controllers, and other serial-based industrial equipment without external converters. Support for Windows XP, Windows 7, Windows 10, Linux, and Windows IoT makes it especially suitable for long-life industrial projects and system upgrades.

Housed in an ultra-slim fanless aluminum enclosure, the IBOX-104V2-2L6C-XP Multi COM Industrial PC delivers stable thermal performance, resistance to dust and vibration, and reliable 24/7 operation in factory automation, HMI systems, and industrial edge control applications.

Model

IBOX-104V2-2L6C-XP

Supported OS

Win XP, Win 7, Win 10, Linux (Ubuntu, Debian, Kali, CentOS, etc.); WES 7; Win 10 IoT

CPU

Intel® Core™ I5-3317U, Dual cores, 4 Threads, Base Fre. 1.70GHz, Turbo Fre. 2.60 GHz, TDP 17W

RAM

SO-DIMM

1* SO-DIMM Socket, DDR3L-1333/1600 MHz, Up to 8GB



Storage

mSATA

1* mSATA3.0 slot on board (6Gb/s)

SATA

1* SATA2.0 7P Connector (3Gb/s, with 1 * SATA Power Wafer)















I/O

Interface

COM

2* RS232/485 (COM1/2, DB9 connector); 2* RS232/485 (COM3/4, Internal header); 2* RS232 (COM5/6, Internal header)

Ethernet

2* GbE LAN, Realtek RTL8111H, support Wake on Network/PXE

USB

4 * USB3.0 (TYPE-A, Rear IO); 5 * USB2.0 (Wafer, Internal header)

Video

1* HDMI, max resolution up to 1920×1200@60Hz

Audio

1 * Line-Out + MIC 2in1 3.5mm Jack; With 7.1 channel HD Audio Codec Realtek ALC897; 1 * Amplifier Header

SIM

1* Built-in SIM card slot connected to Full size Mini PCIe slot

Power Supply

12V DC; 1* DC Jack (5.5* 2.5mm);

Optional 9-30V DC PWR module with Terminal Block (2-Pin, 5.08mm)

Other

1* 8-bit GPIO header with 4 inputs and 4 outputs, Input voltage range: 0-5V;

1* Remote Switch wafer; 1* Reset wafer; 1* PWR LED; 1* HDD LED; 1 * CMOS Clear button; 1* TPM2.0 Jumper

Extended

Capabilities

Additional

Internal Interface

1* Full Size Mini-PCIe with SIM card slot (PCIe+USB2.0, support Wi-Fi+BT/ 4G)

1* Half Size Mini-PCIe (PCIe+USB2.0, support Wi-Fi+BT)





Environment

Operating Temp.

-10 ~ 50 °C w/ 0.7m/s Airflow

Storage Temp.

-40 ~ 85 °C (-40~185 °F)

Relative Humidity

40 °C @ 95%, Non-Condensing

Physical

Characteristics

Dimensions

250* 44* 153 mm (W* H* D) (It has a higher version with 49mm solution)

Net Weight

1.5 KG



Regulation

EMC

CE/FCC Class B, CCC

Safety

CE-LVD, RoHS, CCC

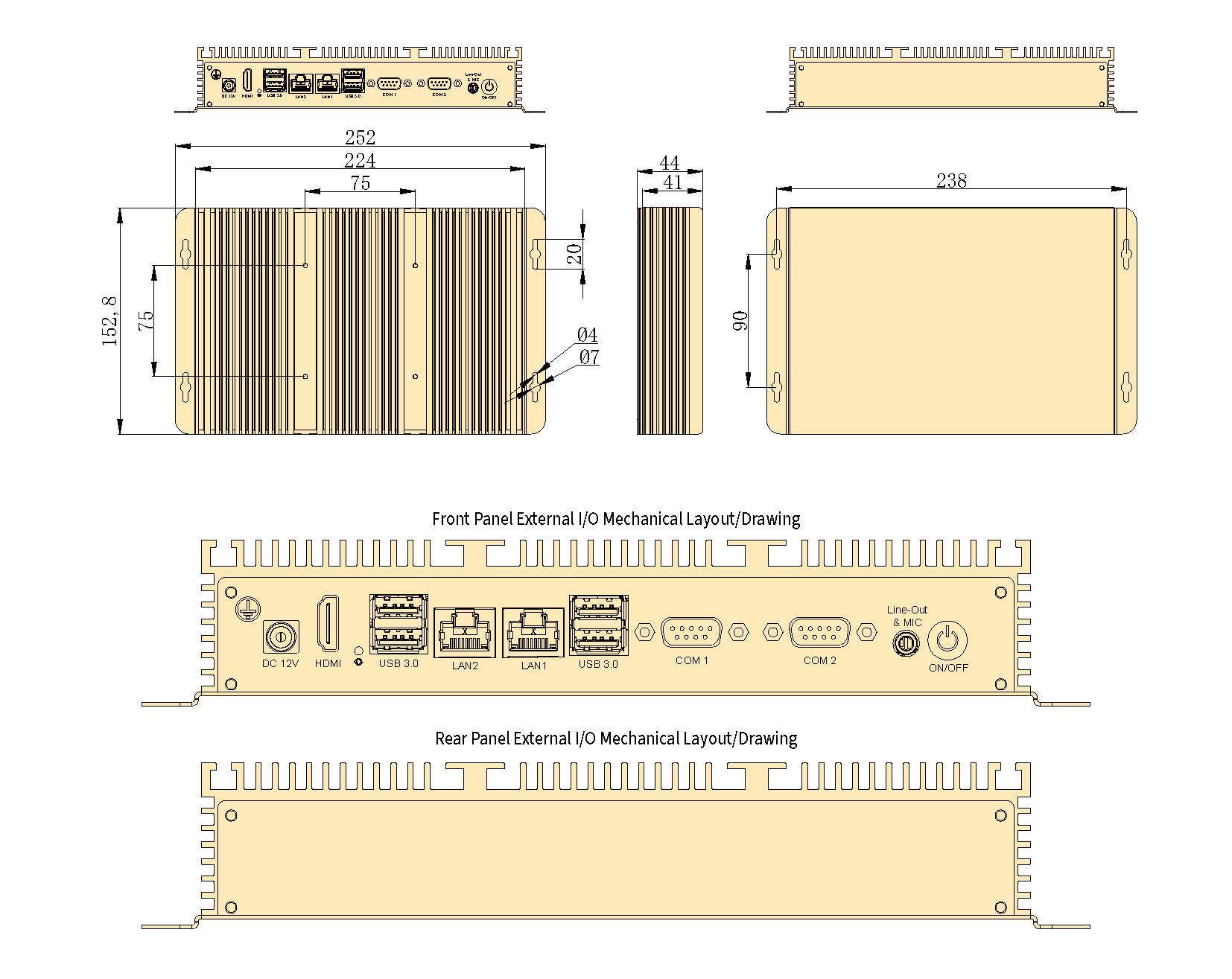

IBOX-104V2-2L6C-XP drawing

CPU

Code Name

Total Cores

Total Threads

Max Turbo Frequency

Base Frequency

Cache

TDP

Memory Types

Integrated Graphics

Intel® Core™ I5-3317U

Ivy Bridge

2

4

2.60 GHz

1.70 GHz

3 MB Intel® Smart Cache

17W

DDR3

Intel® UHD Graphics 4000

Optional Items

Max Qty

Description

Isolated RS-232

6

DB9 or Phoenix Terminal connector, connected by header

Isolated 8-bit GPIO, 9-24V

1

Phoenix Terminal connector, connected by header

4G Module

1

Connected by Mini PCIe interface

WiFi Module without AP mode

1

Connected by Mini PCIe interface

Dual channel CAN-Bus Module

1

Connected by Mini PCIe interface
