AEOLUS-SVA35-4L2C

AEOLUS-SVA35-4L2C is an ARM-based industrial edge controller designed for intelligent automation, machine vision gateways and distributed industrial computing scenarios. Powered by the Rockchip RK3588 processor, the system combines high-performance computing capability with low power consumption to support real-time processing of industrial data and visual workloads.

With integrated industrial communication interfaces, isolated I/O design and flexible expansion capability, the platform simplifies deployment of edge devices and industrial control systems while ensuring stable operation in harsh industrial environments.

  • Powered by Rockchip RK3588 processor with up to 6 TOPS AI computing capability
  • Dual RS232/RS485 serial ports with digital capacitive isolation
  •  Integrated dual isolated CAN channels for industrial communication systems
  • Four Gigabit LAN ports enabling high-speed data transmission in edge computing environments
  • 8-bit isolated GPIO supporting switch and signal modes for industrial control
  • Multiple mounting methods including DIN-rail, wall-mounted and embedded installation

AEOLUS-SVA35-4L2C industrial edge controller is optimized for intelligent control, machine vision gateways and industrial IoT deployments requiring high communication density and reliable computing performance. The RK3588 platform delivers efficient processing power suitable for high-resolution video analysis and real-time industrial data processing.

Rich industrial communication interfaces, isolated I/O channels and flexible wireless expansion options allow seamless integration with sensors, cameras and industrial equipment. Combined with a fanless industrial chassis and wide temperature tolerance, the system ensures long-term stable operation across factories, transportation systems, energy monitoring and smart infrastructure environments.



Model

AEOLUS-SVA35-4L2C

Supported OS

Linux (Ubuntu 22.04)

SoC

ARM Rockchip RK3588, 4*Cortex-A76 + 4*Cortex-A55, Clock speed up to 2.4GHz

GPU

Integated ARM Mali-G610 MP4 GPU, supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2

RAM

SDRAM

SDRAM LPDDR4X-3200MHz on board

Capacity

4G

8G

Storage Device

eMMC

eMMC 5.1 64GB

eMMC 5.1 64GB

Form factor

1* M.2 (NGFF) M-key slot, support M.2 2242/2280 SSD;















I/O Interface

COM

Supports 2-channel serial output ( Support RS232/RS485 switching) and digital capacitive isolation

CAN

Support 2 Channel CAN, and digital capacitive isolation

Ethernet

4 * GbE LAN Chip (10/100/1000 Mbps), RJ45;

1*WIFI 5 RTL8111CU, 433 MHz



USB

1* USB 3.0 (One is OTG)

2 * USB2.0

1* Internal USB 2.0 4PIN header

Video

1* HDMI 2.0 (Max Resolution: 4096 x 2304@60Hz);

SIM

1* Nano SIM connected to M.2 B-Key, support 4G/5G wireless

Power Supply

DC 9-28V, 1* 2-PIN green connector, 5.08mm



Feature I/O

1* 8-bit GPIO on borad (4*DI + 4* DO) with optocoupler isolation, support DC 5-24V (with a max single-port current of 1A), support switch mode/ signal mode;

1* Remote Switch Button;

1* power-on auto-start DIP switch;



Extended Capabilities



Additional Internal Interface

1* M.2 B-Key 3042/3052, USB 2.0 signal, support 4G/5G;

1* Mini-PCIE Slot, USB 2.0 + PCIE x1, supporting Bluetooth (BT) modules and Serial Expansion Cards; 1* TF Card Slot;



Environment

Operating Temp.

-10 ~ 60 °C

Storage Temp.

-40 ~ 85 °C (-40~185 °F)

Relative Humidity

40°C @95%, Non-Condensing

Physical Characteristics

Dimensions

189.5* 43.5* 112.3 mm (W* H* D)

Net Weight

1.00 KG (The final weight please refer to exact specification)



Regulation

EMC

CE/FCC Class B, CCC

Safety

CE-LVD, RoHS, CCC

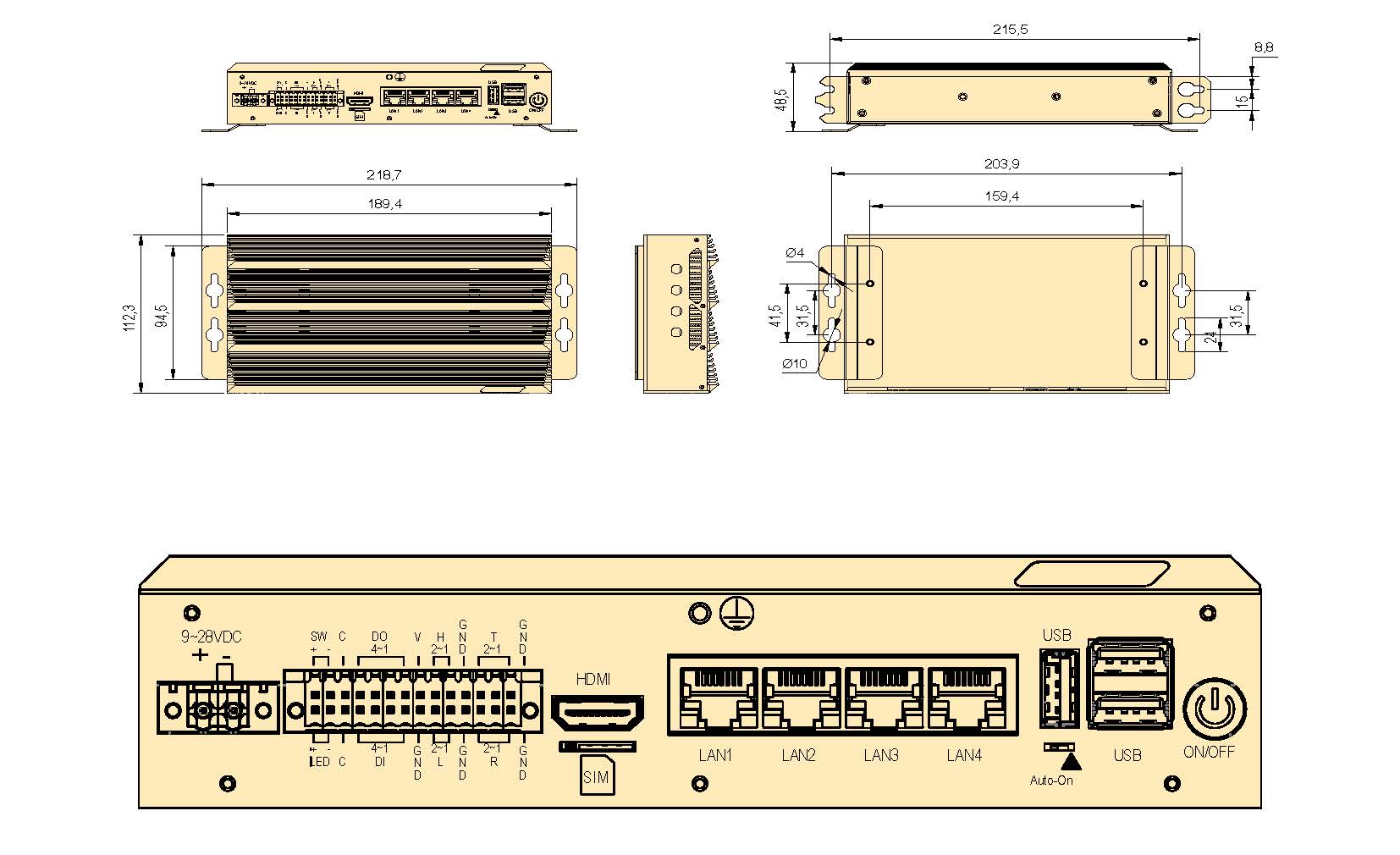

AEOLUS-SVA35-4L2C Drawing

Model

RK3588

CPU

Octa-Core ARM, 4*Cortex-A76 + 4*Cortex-A55



GPU

ARM Mali-G610 MP4

Supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2

High performance 2D/ 3D graphics processor

NPU

Support 6 TOPS AI computing power



Multi-Media

Support 4K@60fps H.265/H.264/AVS2/AVS3 decoder

Support 4K@60fps H.265/H.264/AVS2 encoder

Support 13M ISP with HDR/ WDR

Optional Items

Max Qty

Description

4G/5G Module

1

Connected by M.2 interface

WiFi BT Module

1

Supports Wi-Fi connectivity, with 2.4 GHz & 5.0 GHz dual-band; Connected by Mini-PCIe interface

M.2 M-Key SATA 3.0 SSD

1

128G/ 256G/ 512G
