AEOLUS-SVA35-2L10C

AEOLUS-SVA35-2L10C is an ARM-based industrial edge controller powered by Rockchip RK3568, designed for intelligent control, communication-heavy environments, and low-power edge AI deployment.

With rich serial interfaces, dual CAN, isolated industrial I/O, and stable fanless construction, it delivers reliable performance for automation, gateways, and industrial networking scenarios.

  • Powered by Rockchip RK3568 quad-core Cortex-A55 up to 2.0GHz, integrating up to 1 TOPS AI performance for lightweight edge inference.
  • Supports Android 11 and Linux, enabling flexible application development for HMI, industrial control, and intelligent edge platforms.
  • Equipped with 10-channel RS485, with Channel 1 & 2 supporting RS232 / RS485 switching, all using capacitive isolation to ensure stable and secure industrial communication.
  • Integrated 2-channel isolated CAN bus, supporting reliable real-time communication with industrial controllers, robots, AGVs, and fieldbus devices.
  • 8-bit isolated GPIO (4 DI + 4 DO) with optocoupler design, supporting both signal mode and switch mode for adaptable industrial I/O control.
  • Dual Gigabit Ethernet plus optional 4G / 5G wireless expansion, enabling remote monitoring, cloud connectivity, and distributed edge networking.
  • Wide-range 9V–24V DC power input with high resistance to electrical interference, suitable for complex industrial power environments.
  • Fully enclosed fanless design with cable-free internal structure, delivering silent operation, dust resistance, and long-term deployment reliability.
  • Supports DIN-rail, wall-mount, and embedded installation, simplifying integration into control cabinets and compact automation systems.

Compared with traditional x86 industrial controllers, AEOLUS-SVA35-2L10C focuses on communication density, low power consumption, and intelligent edge control. With 10× RS485, dual CAN, rich isolated I/O, ARM AI capability, versatile OS support, and industrial-grade protection, it is ideal for IoT gateways, smart factories, energy monitoring, transportation systems, building automation, robotics networking, and distributed intelligent control applications.

Model

AEOLUS-SVA35-2L10C

Supported OS

Android 11, Linux(Dibian,Ubuntu)

SoC

ARM Rockchip RK3568B2, 4*Cortex-A55, Clock speed up to 2.0GHz

RAM

SDRAM

SDRAM LPDDR4X-3200MHz on board

Capacity

4G

8G

Storage Device

eMMC

eMMC 5.1 64GB

eMMC 5.1 64GB

Form factor

1* M.2 (NGFF) 2280 M-key slot, support PCIex4 Gen.3 NVMe/ SATA3.0 SSD











I/O Interface

COM

Supports 10-channel 485 output (Channels 1 & 2 support RS232/RS485 switching) and digital capacitive isolation

CAN

Support 2 Channel CAN, and digital capacitive isolation

Ethernet

2 * Realtek GBE LAN Chip (10/100/1000 Mbps), RJ45;



USB

2* USB 3.0 (One is OTG)

1 * USB2.0

1* Internal USB 2.0 4PIN header

Video

1* HDMI 2.0 (Max Resolution: 4096×2304 @60Hz);

SIM

1* Nano SIM connected to M.2 B-Key, support 4G/5G wireless

Power Supply

DC 9-28V, 1* 2-PIN green connector, 5.08mm

Feature I/O

1* 8-bit GPIO on borad (4*DI + 4* DO) with optocoupler isolation, support DC 5-24V (with a max single-port current of 1A), support switch mode/ signal mode; 1* Remote Switch Button; 1* power-on auto-start DIP switch;

Extended

Capabilities



Additional

Internal Interface

1* M.2 B-Key 3042/3052, USB 3.0 signal, support 4G/5G;

1* M.2 M-key SATA 3.0, support M.2 2242/2280 SSD;

1* Mini-PCIE Slot, USB 2.0 + PCIEx1, support BT, Serial Expension Card and so on;

1* TF Card Slot;



Environment

Operating Temp.

-10 ~ 60 °C

Storage Temp.

-40 ~ 85 °C (-40~185 °F)

Relative Humidity

40°C @95%, Non-Condensing

Physical

Characteristics

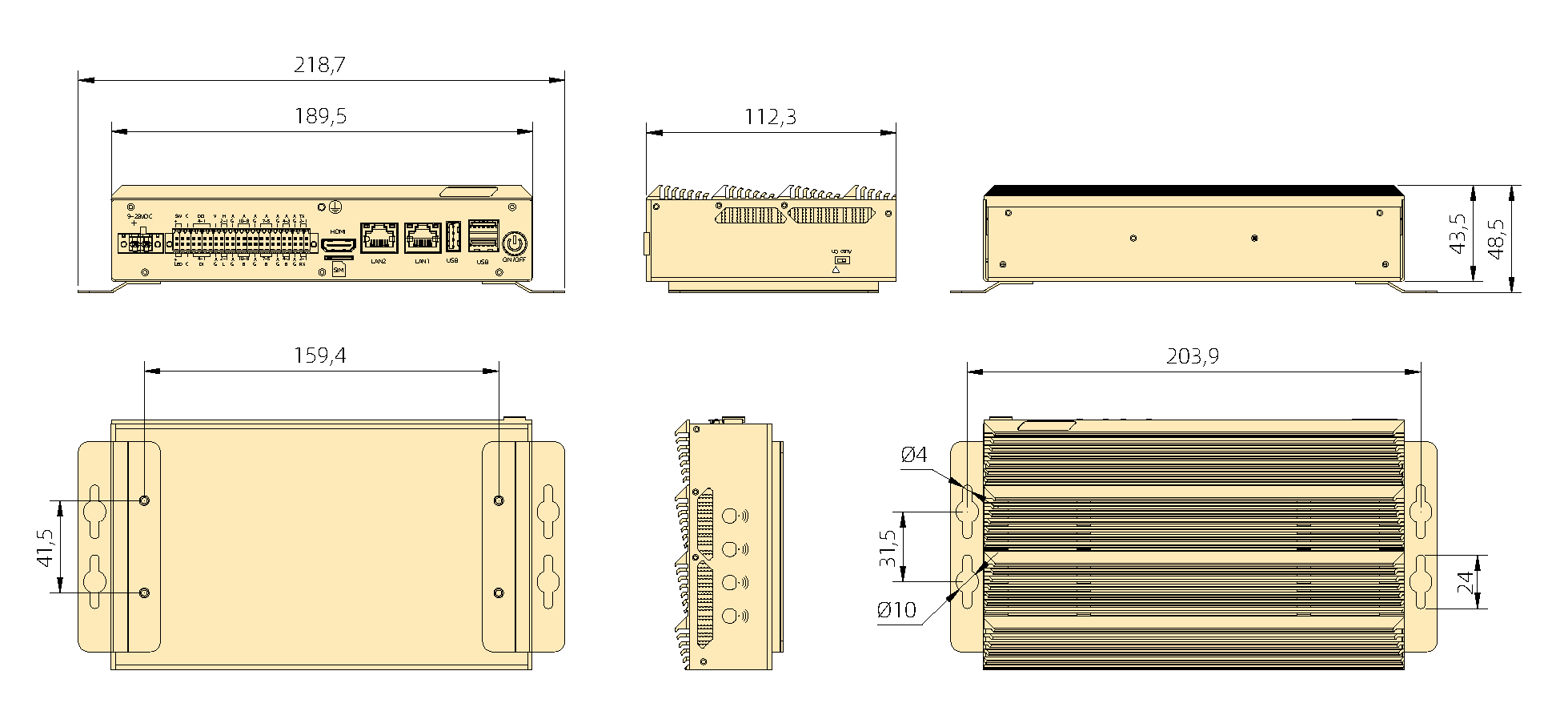

Dimensions

189.5* 43.5* 112.3 mm  (W* H* D)

Net Weight

1.00 KG (The final weight please refer to exact specification)

Regulation

EMC

CE/FCC Class B, CCC

Safety

CE-LVD, RoHS, CCC

AEOLUS-SVA35-2L10C

Model

RK3568

CPU

Quad-Core ARM Cortex-A55, up to 2.0GHz



GPU

ARM G52 2EE

Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1

High performance dedicated 2D processor

NPU

Support 1T



Multi-Media

Support 4K 60fps H.265/H.264/VP9 decoder

Support 1080P 60fps H.265/H.264 encoder

Support 8M ISP with HDR

Optional Items

Max Qty

Description

4G/5G Module

1

Connected by M.2 interface

WiFi BT Module

1

Supports Wi-Fi connectivity, with 2.4 GHz & 5.0 GHz dual-band; Connected by Mini-PCIe interface

M.2 M-Key SATA 3.0 SSD

1

128G/ 256G/ 512G
  • Powered by Rockchip RK3568 quad-core Cortex-A55 up to 2.0GHz, integrating up to 1 TOPS AI performance for lightweight edge inference.
  • Supports Android 11 and Linux, enabling flexible application development for HMI, industrial control, and intelligent edge platforms.
  • Equipped with 10-channel RS485, with Channel 1 & 2 supporting RS232 / RS485 switching, all using capacitive isolation to ensure stable and secure industrial communication.
  • Integrated 2-channel isolated CAN bus, supporting reliable real-time communication with industrial controllers, robots, AGVs, and fieldbus devices.
  • 8-bit isolated GPIO (4 DI + 4 DO) with optocoupler design, supporting both signal mode and switch mode for adaptable industrial I/O control.
  • Dual Gigabit Ethernet plus optional 4G / 5G wireless expansion, enabling remote monitoring, cloud connectivity, and distributed edge networking.
  • Wide-range 9V–24V DC power input with high resistance to electrical interference, suitable for complex industrial power environments.
  • Fully enclosed fanless design with cable-free internal structure, delivering silent operation, dust resistance, and long-term deployment reliability.
  • Supports DIN-rail, wall-mount, and embedded installation, simplifying integration into control cabinets and compact automation systems.

Compared with traditional x86 industrial controllers, AEOLUS-SVA35-2L10C focuses on communication density, low power consumption, and intelligent edge control. With 10× RS485, dual CAN, rich isolated I/O, ARM AI capability, versatile OS support, and industrial-grade protection, it is ideal for IoT gateways, smart factories, energy monitoring, transportation systems, building automation, robotics networking, and distributed intelligent control applications.
