AEOLUS-SV12-324G

AEOLUS-SV12-324G is a high-performance machine vision industrial PC built for inspection systems, automation control, and intelligent edge computing applications. Supporting Intel® 12th–14th Gen desktop processors and equipped with rich industrial I/O, high-speed networking, and dedicated light source control, the system enables reliable real-time image processing and device control in factory and edge environments. Its rugged design and flexible expansion capabilities make it an ideal platform for integrating cameras, sensors, and automation equipment in modern industrial deployments.

  • Supports Intel® 12th–14th Gen Core™ i7/i5/i3 processors with desktop-grade H610 chipset, up to 65W TDP
  • Six Gigabit LAN ports supporting Wake-on-LAN and PXE for industrial networking
  • 4× RS232/RS485 ports switchable via BIOS or DIP switches for industrial communication
  • Integrated light source control outputs ideal for inspection and machine vision systems
  • Supports HDMI and DisplayPort video outputs for industrial display and monitoring
  • Supports wall-mount, vertical and DIN-rail installation methods

AEOLUS-SV12-324G is a high-performance machine vision industrial PC designed for automated inspection, measurement systems and intelligent industrial control applications. Built on the Intel® H610 chipset and supporting 12th to 14th generation Intel® desktop processors, the platform provides strong computing capability for real-time image processing and industrial data analysis.

The system integrates rich industrial I/O including multiple LAN ports, configurable RS232/RS485 interfaces, high-speed storage and dedicated light source control outputs, enabling seamless integration with cameras, sensors and automation equipment. Its rugged cooling structure and industrial power protection ensure reliable operation in factory and edge deployment environments.

Model

AEOLUS-SV12-324G

Supported OS

Win 10, Win 11, Linux (Ubuntu, Dibian, Kali, CentOS), Win 10 IoT



Chipset

Model

Intel® H610 Chipset, TDP 6W

Intel VT-d

Supported







CPU

Socket

Intel® Desktop Processors Socket LGA1700

Series

12th-14th Gen. Intel® Core™ i7/ i5 /i3 Processor

TDP

Up to 65W

Graphic

Intel® UHD Graphics (depends on processor model)

BIOS

AMI UEFI BIOS

RAM

SO-DIMM

2* DDR4 3200 MHz SO-DIMM Socket, Capacity up to 64GB;

Storage Device

M.2

1* M.2 (NGFF) 2280 M-key slot, support SATA3.0 (6Gps) SSD















I/O Interface

COM

4* RS232/RS485, switchable via switches or BIOS;

Ethernet

5* Intel i210-AT GbE LAN, 1* Intel i219-V GbE LAN; Supports wake-on-LAN, PXE



USB

4* USB 3.2;

1* Internal USB 2.0;

2* 4-Pin USB 2.0 internal header

Video

1* HDMI (Max Resolution: 4096×2160 @30Hz); 1* DP (Max Resolution: 4096×2160 @30Hz);

SIM

1* Nano SIM connected to Mini-pcie, support 4G wireless

Power Supply

DC 12V-24V, Auto detected, support RVP/OVP/OCP; 2* 2-PIN green connector, 5.08mm





Featured Interface

32*onboard GPIO channels (16 DI + 16 DO) supporting a wide DC 3.3V – 30V input range. It features switching mode with a sink current capability of 150mA per port (total max 600mA);

4* Light source output, each capable of delivering up to 60W, the output voltage is determined by the motherboard’s power supply, with support for both software and hardware triggering;

1* Clear CMOS;

1* Recovery Button;

Extended Capabilities

Additional Internal Interface

1* Full Size Mini-PCIe slot (PCIE x1 GEN3), optional CAN/LAN/WiFi ect. 1* Full Size Mini-PCIe (USB2.0), support 4G;



Environment

Operating Temp.

-10 ~ 60 °C w/ 0.7m/s Airflow

Storage Temp.

-20 ~ 75 °C (-40~185 °F)

Relative Humidity

40 °C @95%, Non-Condensing

Physical Characteristics

Dimensions

215* 86.1* 166.8 mm (W* H* D)

Net Weight

2.30 KG

Regulation

EMC

CE/FCC Class B, CCC

Safety

CE-LVD, RoHS, CCC

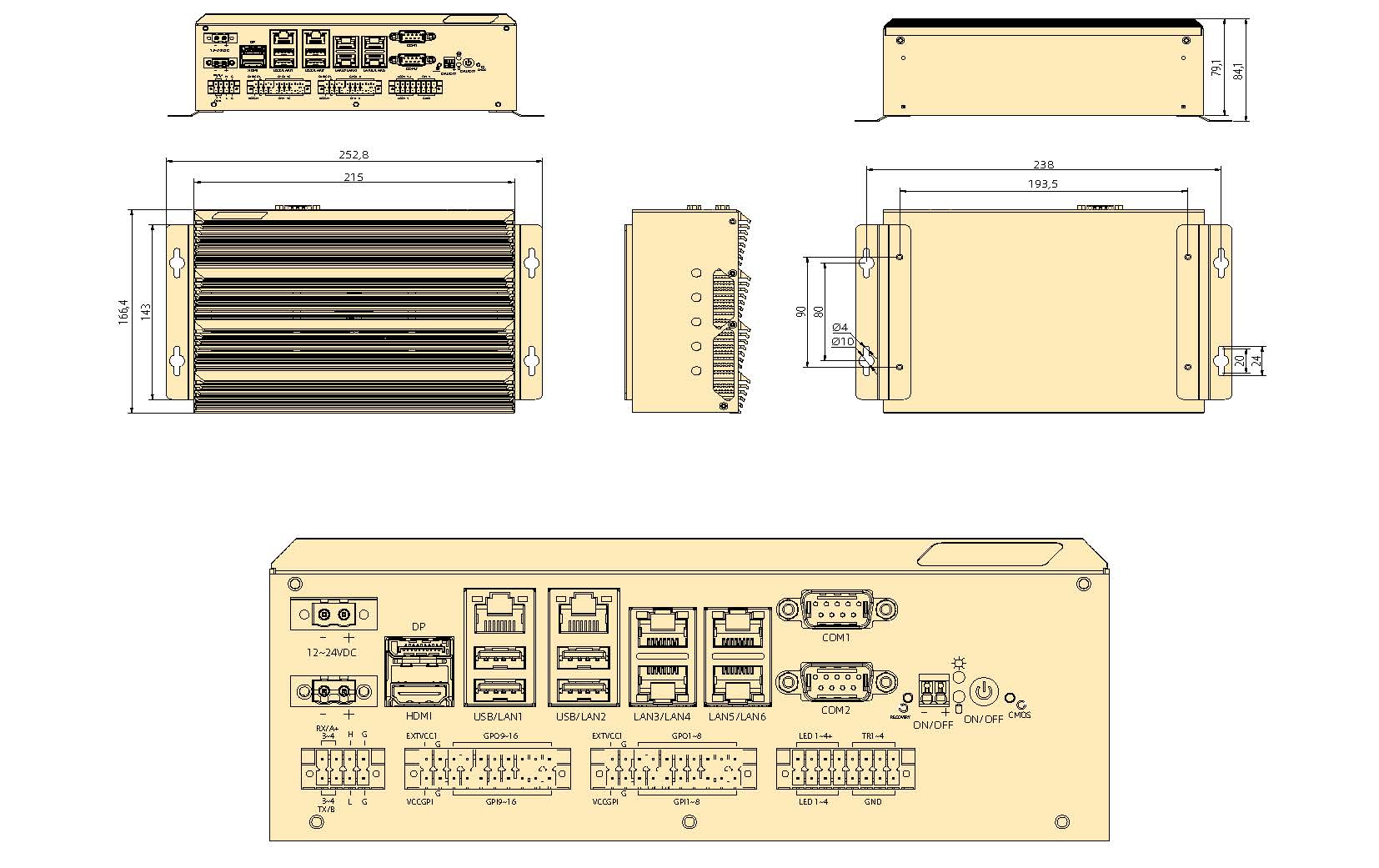

AEOLUS-SV12-324G Drawing

CPU

Code Name

Total Cores

Total Threads

Max Turbo Frequency

Base Frequency

Cache

TDP

Memory Types

Integrated Graphics

Intel® Core ™ I3-12100

Alder Lake

4

8

4.30 GHz

3.30 GHz

12 MB Intel® Smart Cache

60W

DDR4

Intel® UHD 730

Intel® Core ™ I5-12400

Alder Lake

6

12

4.40 GHz

2.50 GHz

18 MB Intel® Smart Cache

65W

DDR4

Intel® UHD 730

Intel® Core ™ I7-12700

Alder Lake

12

20

4.90 GHz

2.10 GHz

25 MB Intel® Smart Cache

65W

DDR4

Intel® UHD 770

Intel® Core ™ I9-12900

Alder Lake

16

24

5.10 GHz

2.40 GHz

30 MB Intel® Smart Cache

65W

DDR4

Intel® UHD770

Intel® Core ™ I3-13100

Alder Lake

4

8

4.50 GHz

3.40 GHz

12 MB Intel® Smart Cache

60W

DDR4

Intel® UHD 730

Intel® Core ™ I5-13400

Alder Lake

10

16

4.60 GHz

2.50 GHz

20 MB Intel® Smart Cache

65W

DDR4

Intel® UHD 730

Intel® Core ™ I7-13700

Alder Lake

16

24

5.20 GHz

2.10 GHz

30 MB Intel® Smart Cache

65W

DDR4

Intel® UHD 770

Intel® Core ™ I3-14100

Alder Lake

4

8

4.70 GHz

3.50 GHz

12 MB Intel® Smart Cache

60W

DDR4

Intel® UHD 730

Intel® Core ™ I5-14400

Alder Lake

10

16

4.70 GHz

2.50 GHz

20 MB Intel® Smart Cache

65W

DDR4

Intel® UHD 730

Intel® Core ™ I7-14700

Alder Lake

20

28

5.40 GHz

2.10 GHz

33 MB Intel® Smart Cache

65W

DDR4

Intel® UHD 770

Optional Items

Max Qty

Description

4G Module

1

Connected by Mini-PCIe interface

WiFi Module without AP mode

1

Connected by Mini-PCIe interface

USB 16 bit GPIO

 1

Connected by USB

EtherCAT

1

EtherCAT Master, supporting a maximum of 16 slaves (servos + I/O) at a 1ms cycle

  • Supports Intel® 12th–14th Gen Core™ i7/i5/i3 processors with desktop-grade H610 chipset, up to 65W TDP
  • Six Gigabit LAN ports supporting Wake-on-LAN and PXE for industrial networking
  • 4× RS232/RS485 ports switchable via BIOS or DIP switches for industrial communication
  • Integrated light source control outputs ideal for inspection and machine vision systems
  • Supports HDMI and DisplayPort video outputs for industrial display and monitoring
  • Supports wall-mount, vertical and DIN-rail installation methods

AEOLUS-SV12-324G is a high-performance machine vision industrial PC designed for automated inspection, measurement systems and intelligent industrial control applications. Built on the Intel® H610 chipset and supporting 12th to 14th generation Intel® desktop processors, the platform provides strong computing capability for real-time image processing and industrial data analysis.

The system integrates rich industrial I/O including multiple LAN ports, configurable RS232/RS485 interfaces, high-speed storage and dedicated light source control outputs, enabling seamless integration with cameras, sensors and automation equipment. Its rugged cooling structure and industrial power protection ensure reliable operation in factory and edge deployment environments.

Model

AEOLUS-SV12-324G

Supported OS

Win 10, Win 11, Linux (Ubuntu, Dibian, Kali, CentOS), Win 10 IoT



Chipset

Model

Intel® H610 Chipset, TDP 6W

Intel VT-d

Supported







CPU

Socket

Intel® Desktop Processors Socket LGA1700

Series

12th-14th Gen. Intel® Core™ i7/ i5 /i3 Processor

TDP

Up to 65W

Graphic

Intel® UHD Graphics (depends on processor model)

BIOS

AMI UEFI BIOS

RAM

SO-DIMM

2* DDR4 3200 MHz SO-DIMM Socket, Capacity up to 64GB;

Storage Device

M.2

1* M.2 (NGFF) 2280 M-key slot, support SATA3.0 (6Gps) SSD















I/O Interface

COM

4* RS232/RS485, switchable via switches or BIOS;

Ethernet

5* Intel i210-AT GbE LAN, 1* Intel i219-V GbE LAN; Supports wake-on-LAN, PXE



USB

4* USB 3.2;

1* Internal USB 2.0;

2* 4-Pin USB 2.0 internal header

Video

1* HDMI (Max Resolution: 4096×2160 @30Hz); 1* DP (Max Resolution: 4096×2160 @30Hz);

SIM

1* Nano SIM connected to Mini-pcie, support 4G wireless

Power Supply

DC 12V-24V, Auto detected, support RVP/OVP/OCP; 2* 2-PIN green connector, 5.08mm





Featured Interface

32*onboard GPIO channels (16 DI + 16 DO) supporting a wide DC 3.3V – 30V input range. It features switching mode with a sink current capability of 150mA per port (total max 600mA);

4* Light source output, each capable of delivering up to 60W, the output voltage is determined by the motherboard’s power supply, with support for both software and hardware triggering;

1* Clear CMOS;

1* Recovery Button;

Extended Capabilities

Additional Internal Interface

1* Full Size Mini-PCIe slot (PCIE x1 GEN3), optional CAN/LAN/WiFi ect. 1* Full Size Mini-PCIe (USB2.0), support 4G;



Environment

Operating Temp.

-10 ~ 60 °C w/ 0.7m/s Airflow

Storage Temp.

-20 ~ 75 °C (-40~185 °F)

Relative Humidity

40 °C @95%, Non-Condensing

Physical Characteristics

Dimensions

215* 86.1* 166.8 mm (W* H* D)

Net Weight

2.30 KG

Regulation

EMC

CE/FCC Class B, CCC

Safety

CE-LVD, RoHS, CCC

AEOLUS-SV12-324G Drawing

Optional Items

Max Qty

Description

4G Module

1

Connected by Mini-PCIe interface

WiFi Module without AP mode

1

Connected by Mini-PCIe interface

USB 16 bit GPIO

 1

Connected by USB

EtherCAT

1

EtherCAT Master, supporting a maximum of 16 slaves (servos + I/O) at a 1ms cycle
